Yoke Type Track Rollers - NATRNATV Series

Product Description

The pulleys are available with a flat runner surface or a crowned one, which can be designed according to customer’s application. They can roll directly on the tray under heavy load and shock load. They are greased for life. Under normal operating conditions, they are maintenance-free, while they should be re-lubricated under severe working condition to prolong the working lifespan.Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and are suitable for cam drives, slideways, conveying equipment etc. The bearings are available with or without an inner ring as well as in open and sealed versions.

MBY support rollers are basically needles or cylindrical roller bearings with a thick-walled outer race. The rollers are available either with a flat runner surface or crowned runner surface, which can be designed according to customer's application. With this outer race, the support rollers are able to roll directly in the raceway and bear a heavy load rating. The crowned runner surface should always be used where angular misalignments with respect to the track expected and edge stresses kept to a minimum. They are ready-to-fit units, filled with grease and are suitable for all types of cam drives, tracks, conveyor systems and etc. The support rollers can be divided into ones with axial guidance or without axial guidance. And from sealing structure, they can be divided into open type and sealed type.

Applications of MBY support rollers:
Automotive equipments;
Material handling equipments;
Mining & metals equipments;
Linear motion guide equipment;

Advantages of MBY support rollers:
Optimized structure and reliable quality;
Modifying the contacting surface logarithmically to reduce the contact stress;
Used in wide range with different precision standards;
Reducing the fitting and maintaining costs with the ready-to-fit units;
Special oil supplying system and easily operating;
With thick-walled outer and can take up high radial load especially;
With axial guidance, support rollers can bear the axial impact load even at high speed;



Note：Swipe left or right to view the complete table!

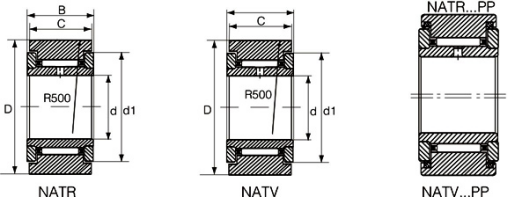

MBY Bearing Code and Approx Mass				Shaft	Other Dimensions					Basic load rating		Limiting  Speed
				Diameter
Without Seal	Mass	Sealed	Mass		d	D	B	C	D1	Cr	Cor	Grease
	g		g	mm						Dynamic N	Static  N	rpm
NATR10	64	NATR10PP	64	30	10	30	15	14	23	6100	7800	11000
NATR12	71	NATR12PP	71	32	12	32	15	14	25	6600	9800	9000
NATR15	103	NATR15PP	103	35	15	35	19	18	27	10500	17500	7000
NATR17	144	NATR17PP	144	40	17	40	21	20	32	11800	19400	6000
NATR20	246	NATR20PP	246	47	20	47	25	24	37	17500	29800	4900
NATR25	275	NATR25PP	275	52	25	52	25	24	42	19500	36500	3600
NATR30	470	NATR30PP	470	62	30	62	29	28	51	31000	57500	2600
NATR35	635	NATR35PP	635	72	35	72	29	28	58	34500	67500	2000
NATR40	805	NATR40PP	805	80	40	80	32	30	66	47000	91500	1700
NATR45	910	NATR45PP	910	85	45	85	32	30	72	49100	98000	1500
NATR5	14	NATR5PP	14	16	5	16	12	11	12	3050	3000	22000
NATR50	960	NATR50PP	960	90	50	90	32	30	76	50500	10600	1300
NATR6	20	NATR6PP	20	19	6	19	12	11	14	3600	36500	20000
NATR8	41	NATR8PP	41	24	8	24	15	14	19	4500	5400	5000
NATV10	65	NATV10PP	65	30	10	30	15	14	23	10900	17000	4500
NATV12	72	NATV12PP	72	32	12	32	15	14	25	11800	19000	3900
NATV15	105	NATV15PP	105	35	15	35	19	18	27	16000	32500	3400
NATV17	152	NATV17PP	152	40	17	40	21	20	32	196900	37000	2900
NATV20	254	NATV20PP	254	47	20	47	25	24	37	25800	57000	2600
NATV25	285	NATV25PP	285	52	25	52	25	24	42	29000	69600	2100
NATV30	481	NATV30PP	481	62	30	62	29	28	51	45500	104000	1700
NATV35	647	NATV35PP	647	72	35	72	29	28	58	50800	109500	1400
NATV40	890	NATV40PP	890	80	40	80	32	30	66	64000	139000	1300
NATV5	15	NATV5PP	15	16	5	16	12	11	12	4500	6300	8500
NATV50	990	NATV50PP	990	90	50	90	32	30	76	69500	187000	1000
NATV6	21	NATV6PP	21	19	6	19	12	11	14	5700	8700	7000
NATV8	42	NATV8PP	42	24	8	24	15	14	19	8600	12000	5500
