SHF - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

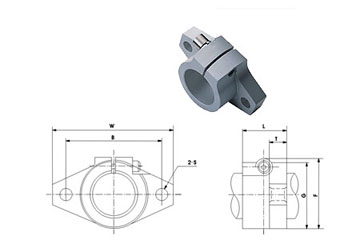

MBY Bearing Code	Shaft Diameter	Main Dimensions/mm							Designation of clamping bolt	Designation of mounting bolt	Weight(kg)
		W	L	T	F	G	B	S
SHF10	10	43	10	5	24	20	32	5.5	M4	M5	0.013
SHF12	12	47	13	7	28	25	36	5.5	M4	M5	0.02
SHF13	13	47	13	7	28	25	36	5.5	M4	M5	0.02
SHF16	16	50	16	8	31	28	40	5.5	M4	M5	0.027
SHF20	20	60	20	8	37	34	48	7	M5	M6	0.04
SHF25	25	70	25	10	42	40	56	7	M5	M6	0.06
SHF30	30	80	30	12	50	46	64	9	M6	M8	0.11
SHF35	35	92	35	14	58	50	72	12	M8	M10	0.38
SHF40	40	102	40	16	67	56	80	12	M10	M10	0.51
SHF50	50	122	50	19	83	70	96	14	M12	M12	0.89
SHF60	60	140	60	23	95	82	112	14	M12	M12	1.5
