KBE - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

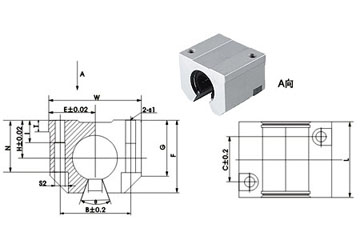

MBY Bearing Code	Shaft Diameter	Main Dimensions/mm								Mounting Dimension/mm				Basic rated load		Weight(kg)
										B	C	S	l	c(kgf)	Co(kgf)
		h	E	W	L	F	T	h1	θ
KBE10	10	15	18	36	32	24	7	6	80	25	20	M5	10	38	56	0.065
KBE12	12	17	20	40	39	27.6	8	8.5	80	28	26	M5	10	52	79	0.1
KBE16	16	20	22.5	45	45	33	9	10	80	32	30	M5	10	59	91	0.15
KBE20	20	23	24	48	50	39	11	10	60	35	35	M6	12	88	140	0.2
KBE25	25	27	30	60	65	47	14	11.5	60	40	40	M6	12	100	160	0.45
KBE30	30	33	35	70	70	56	15	14	60	50	50	M8	18	160	280	0.63
KBE40	40	42	45	90	90	72	20	19	60	65	65	M10	20	220	410	1.33
KBE50	50	53	60	120	110	92	25	23	60	94	80	M10	20	390	810	3
