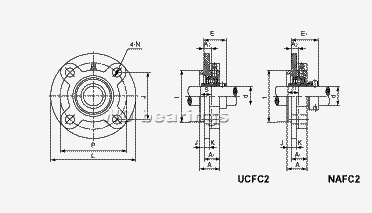

UCFC2, NAFC2 Series

Product Description

MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.
They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.
Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.
MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

The housing are mainly casting or pressed steel.  The bearing unit are compact in design with perfect sealing devices .
They can align with easy during operation and can be conveniently mounted or dismounted.



Note：Swipe left or right to view the complete table!

Unit No.	Dimensions(mm)															Bolt Used	Bearing No.	Housing No.	Mass
																(mm)			(kg)
	d	L	P	A2	A1	A	A3	K	N	J	f	S	E2	S1	E				UCFC	NAFC
210	50	165	138	10	28	40	12	14	16	97.6	110	19	42.6	24.6	48.1	M14	NA210	FC210	2.9	3.3
211	55	185	150	13	30	42	12	13	19	106.1	125	22.2	46.4	27.7	56.6	M16	NA211	FC211	4.2	4.5
212	60	195	160	17	36	48	12	15	19	113.1	135	25.4	56.7	30.9	63.8	M16	NA212	FC212	4.94	5.7
213	65	205	170	16	35	49	14	15	19	120.2	145	25.4	55.7	24.1	67.6	M16	NA213	FC213	5.7	6.5
214	70	215	177	17	38	52	14	16	19	125.1	150	30.2	61.4	34.1	68.6	M16	NA214	FC214	6.8	7.2
215	75	220	184	18	39	55	16	17	19	130.1	160	33.3	62.5	37.3	72.8	M16	NA215	FC215	7.2	8
216	80	240	200	18	42	58	16	18	23	141.1	170	33.3	67.3	37.3	75.9	M20	NA216	FC216	8.7	9.53
217	85	250	208	18	45	63	18	20	23	147.1	180	34.1	69.6	0	0	M20	NA217	FC217	10.3	0
218	90	265	220	22	50	68	18	20	23	155.5	190	39.7	78.3	0	0	M20	NA218	FC218	13.5	0
202	15	90	70	10	19	23	4	5	10	49.5	55	11.5	25.9	13.9	33.4	M8	UC202	FC203	0.56	0.6
203	17	90	70	10	19	23	4	5	10	49.5	55	11.5	25.9	13.9	33.4	M8	UC203	FC203	0.54	0.58
204	20	100	78	10	20.5	25.5	5	6	11.5	55.1	62	12.7	28.3	17	36.5	M10	UC204	FC204	0.76	0.8
205	25	115	90	10	21	27	6	7	12	63.6	70	14.3	29.7	17.4	36.9	M10	UC205	FC205	0.96	1.1
206	30	125	100	10	23	31	8	8	12	70.7	80	15.9	32.2	18.2	40.1	M10	UC206	FC206	1.37	1.5
207	35	135	110	11	26	34	8	9	14	77.8	90	17.5	36.4	18.8	43.3	M12	UC207	FC207	1.7	1.8
208	40	145	120	11	26	36	10	9	14	84.8	100	19	41.2	21.4	45.9	M12	UC208	FC208	2	2.2
209	45	160	132	10	26	38	12	12	16	93.3	105	19	40.2	21.4	44.9	M14	UC209	FC209	2.7	2.8
