TBR - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

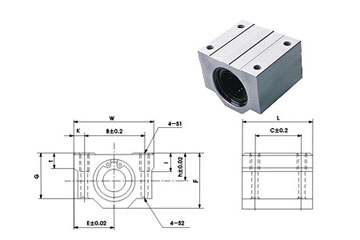

MBY Bearing Code	D	H	E	T	F	G	W	B	C	L	S	Weight
TBR16	28	17.86	31	8	27	48	62	30	50	42	M5	0.18
TBR20	32	20.99	34	10	31.4	52.4	68	37	54	51	M6	0.3
TBR25	40	28	41	12	41	61	82	50	65	65	M8	0.6
TBR30	45	33.48	45.5	12	48	65	91	60	75	75	M8	0.9
