SKB Series Linear Motion Bearings

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

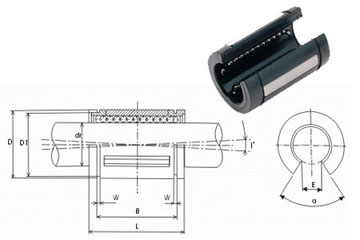

MBY Bearing Code	Number of ball rows	Main Dimensions/mm						Clearance	Basic Load rating
		dr	D	L	D1	B	W	H7/g6	c(kgf)	co(kgf)
SKB10	5	10	19	29	18	21.7	1.35	0.01^	77	56
SKB12	5	12	22	32	21	22.7	1.35	0.011^	126	112
SKB16	5	16	26	36	24.9	24.7	1.35	0.011^	153	128
SKB20	6	20	32	45	30.3	31.3	1.65	0.012^	263	170
SKB25	6	25	40	58	37.5	43.8	1.9	0.012^	388	281
SKB30	6	30	47	68	44.5	51.8	1.9	0.012^	481	286
SKB40	6	40	62	80	59	60.4	2.2	0.013^	663	584
SKB50	6	50	75	100	72	77.4	2.7	0.013^	1169	810
