Chain Pulley - Single Row Deep Groove Ball Bearing Type

Product Description

MBY track roller bearings include mast rollers and chain pulleys, and york type track rollers. They are essentially cylindrical roller or needle roller bearings which have a thick-walled outer race.The pulleys are available with a flat runner surface or a crowned one, which can be designed according to customer’s application. They can roll directly on the tray under heavy load and shock load. They are greased for life. Under normal operating conditions, they are maintenance-free, while they should be re-lubricated under severe working condition to prolong the working lifespan.Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and are suitable for cam drives, slideways, conveying equipment etc. The bearings are available with or without an inner ring as well as in open and sealed versions.



Note：Swipe left or right to view the complete table!

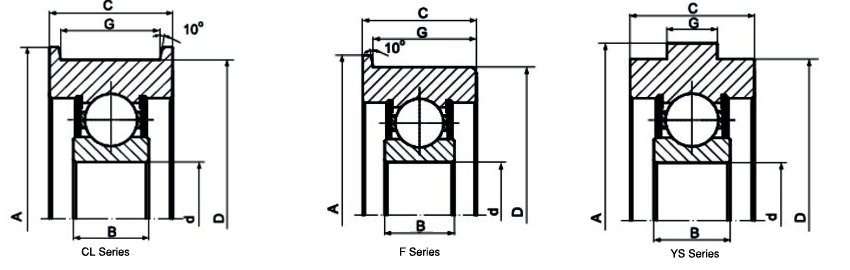

Bearing Code	d	D	C	B	A	G
	mm	mm	mm	mm	mm	mm
CL307K-2RS	35	80	29	21	90	21
CL308K-2RS	40	100	36	23	114	28
CL308K1-2RS	40	123	36	23	138	28
CL309K-2RS	45	110	40	25	123	31
CL310K-2RS	50	122	46	27	141	34
F6307K-2RS	35	80	25	21	90	20
F6307K1-2RS	35	80	30	21	90	23
F6308K-2RS	40	100	35	23	114	28
F6309K-2RS	45	110	40	25	123	31
F6310K-2RS	50	122	42	27	141	34
YS6307K-2RS	35	77	25	21	88	15
YS6308K-2RS	40	88	28	23	100	18
YS6309K-2RS	45	100	28	25	110	18
YS6310K-2RS	50	115	30	27	129	18
