Model: LM…LUU Linear Motion Bearings
Brand: MBY
Quantity:
Inquire Add to Basket

LM…LUU Linear Motion Bearings

Product Description
MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.
As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small.
By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.
2

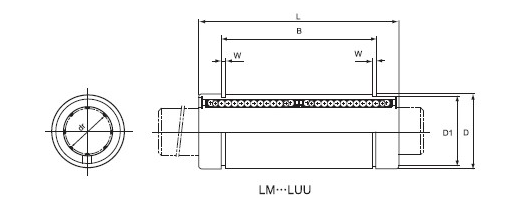

MBY Model No. Number of Ball Rows Mass
g		 Inscribed Circle Diameter Out Diameter Length B W D1 Eccentricity  Radial  Basic load
(max.) Clearance  rating

Tolerance
dr Tolerance D Tolerance L Tolerance
Tolerance μm
C (N) Co (N)
LM 10LUU 4 62 10 0/-0.010 19 0/-0.016 55 0/-0.3 44 0/-0.3 1.3 18 15 15 588 1100
LM 12LUU 4 80 12 0/-0.010 21 0/-0.016 57 0/-0.3 46 0/-0.3 1.3 20 15 15 657 1200
LM 13LUU 4 90 13 0/-0.010 23 0/-0.016 61 0/-0.3 46 0/-0.3 1.3 22 15 15 814 1570
LM 16LUU 5 145 16 0/-0.010 28 0/-0.016 70 0/-0.3 53 0/-0.3 1.6 27 15 15 1230 2350
LM 20LUU 5 180 20 0/-0.012 32 0/-0.019 80 0/-0.3 61 0/-0.3 1.6 30.5 20 20 1400 2750
LM 25LUU 6 440 25 0/-0.012 40 0/-0.019 112 0/-0.4 82 0/-0.4 1.85 38 20 20 1560 3140
LM 30LUU 6 580 30 0/-0.012 45 0/-0.019 123 0/-0.4 89 0/-0.4 1.85 43 20 20 2490 5490
LM 35LUU 6 795 35 0/-0.012 52 0/-0.022 135 0/-0.4 99 0/-0.4 2.1 49 25 25 2650 6470
LM 40LUU 6 1170 40 0/-0.012 60 0/-0.022 154 0/-0.4 121 0/-0.4 2.1 57 25 25 3430 8040
LM 50LUU 6 2100 50 0/-0.012 80 0/-0.022 192 0/-0.4 148 0/-0.4 2.6 76.5 25 25 6080 15900
LM 60LUU 6 3500 60 0/-0.020 90 0/-0.025 211 0/-0.4 170 0/-0.4 3.15 86.5 25 25 7650 20000
LM 6LUU 4 16 6 0/-0.010 12 0/-0.013 35 0/-0.3 27 0/-0.3 1.1 11.5 15 15 324 529
LM 8LUU 4 31 8 0/-0.010 15 0/-0.013 45 0/-0.3 35 0/-0.3 1.1 14.3 15 15 431 784
