SBPF2,SBPFT2 Series

Product Description

MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.
They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.
Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.
MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

 The housing are mainly casting or pressed steel.  The bearing unit are compact in design with perfect sealing devices .
They can align with easy during operation and can be conveniently mounted or dismounted.



Note：Swipe left or right to view the complete table!

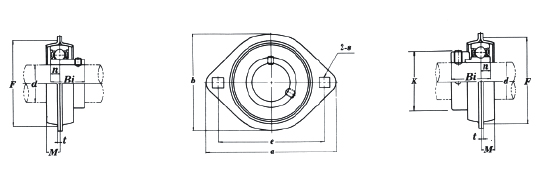

Unit No.	Dimensions(mm)												Bolt Used(mm)	Bearing No.	Housing No.	Mass(kg)
	d	H	J	A2	L	N	t	S	S1	B	B1	d1				SBPFL	SAPFL
205	25	95	76	10	71	9	2	7.5	7.5	27	30.5	38.1	5/16	SA205	PFL205	0.38	0.32
206	30	113	90.5	11	84	10.5	2.5	8	8	29	33.9	44.5	3/8	SA206	PFL206	0.38	0.41
207	35	122	100	12	94	10.5	2.5	8.5	8.5	32	37.5	55.6	3/8	SA207	PFL207	0.64	0.69
201	12	81	63.5	7	59	7.5	2	6	6.5	22	28.6	28.6	1/4	SB201	PFL203	0.2	0.22
202	15	81	63.5	7	59	7.5	2	6	6.5	22	28.6	28.6	1/4	SB202	PFL203	0.2	0.22
203	17	81	63.5	7	59	7.5	2	6	6.5	22	28.6	28.6	1/4	SB203	PFL203	0.2	0.21
204	20	90	71.5	8.5	67	9	2	7	7	25	29.5	33.3	5/16	SB204	PFL204	0.24	0.25
