XRE Cross Roller Bearing

Product Description

XRE type is also the basic type of cross roller bearings, dimensions and XRB type the same, but the structure of the outer ring as a whole, the inner ring is divided into two, it is most suitable for the requirements of the outer ring rotation accuracy of the occasion.

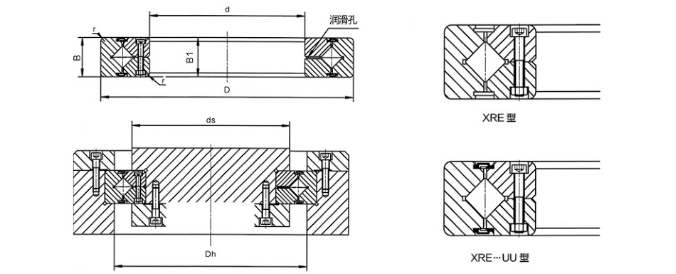

Type	Dimension(mm)						Rated Load		Weight	Releated type
	ID	OD	B	Roller pitch circle diameter	shaft shoulder dimension		Radial(KN)
	d	D	B	Dpw	ds	Dh	C	Co	Kg	THK
XRE2008	20	36	8	29	23.5	30.5	3.23	3.1	0.04	RE2008
XRE2508	25	41	8	34	28.5	35.5	3.63	3.83	0.05	RE2508
XRE3010	30	55	10	43.5	37	47	7.35	8.36	0.12	RE3010
XRE3510	35	60	10	48.5	41	51.5	7.64	9.12	0.13	RE3510
XRE4010	40	65	10	53.5	47.5	58	8.33	10.6	0.16	RE4010
XRE4510	45	70	10	58.5	51	61.5	8.62	11.3	0.17	RE4510
XRE5013	50	80	13	66	57.5	72	16.7	20.9	0.27	RE5013
XRE6013	60	90	13	76	68	82	18	24.3	0.3	RE6013
XRE7013	70	100	13	86	78	92	19.4	27.7	0.35	RE7013
XRE8016	80	120	16	101.4	91	111	30.1	42.1	0.7	RE8016
XRE9016	90	130	16	112	98	118	31.4	45.3	0.75	RE9016
XRE10016	100	140	16	121.1	109	129	31.7	48.6	0.83	RE10016
XRE10020		150	20	127	113	133	33.1	50.9	1.45	RE10020
XRE11012	110	135	12	123.3	117	127	12.5	24.1	0.4	RE11012
XRE11015		145	15	129	122	136	23.7	41.5	0.75	RE11015
XRE11020	120	160	20	137	120	140	34	54	1.56	RE11020
XRE12016		150	16	136	127	141	24.2	43.2	0.72	RE12016
XRE12025		180	25	152	133	164	66.9	100	2.62	RE12025
XRE13015	130	160	15	146	137	152	25	46.7	0.72	RE13015
XRE13025		190	25	162	143	174	69.5	107	2.82	RE13025
XRE14016	140	175	16	160	147	162	25.9	50.1	1	RE14016
XRE14025		200	25	172	154	185	74.8	121	2.96	RE14025
XRE15013	150	180	13	166	158	172	27	53.5	0.68	RE15013
XRE15025		210	25	182	164	194	76.8	128	3.16	RE15025
XRE15030		230	30	192	173	210	100	156	5.3	RE15030
XRE16025	160	220	25	192	173	204	81.7	135	3.14	RE16025
XRE17020	170	220	20	196.1	184	198	29	62.1	2.21	RE17020
XRE18025	180	240	25	210	195	225	84	143	3.44	RE18025
XRE19025	190	240	25	219	202	222	41.7	82.9	2.99	RE19025
XRE20025	200	260	25	230	215	245	84.2	157	4	RE20025
XRE20030		280	30	240	221	258	114	200	6.7	RE20030
XRE20035		295	35	247.7	225	270	151	252	9.6	RE20035
XRE22025	220	280	25	250.1	235	265	92.3	171	4.1	RE22025
XRE24025	240	300	25	272.5	256	281	68.3	145	4.5	RE24025
XRE25025	250	310	25	280.9	268	293	69.3	150	5	RE25025
XRE25030		330	30	287.5	269	306	126	244	8.1	RE25030
XRE25040		355	40	300.7	275	326	195	348	14.8	RE25040
XRE30025	300	360	25	332	319	344	76.3	178	5.9	RE30025
XRE30035		395	35	345	322	368	183	367	13.4	RE30035
XRE30040		405	40	351.6	326	377	212	409	17.2	RE30040
XRE35020	350	400	20	376.6	363	383	54.1	143	3.9	RE35020
XRE40035	400	480	35	440.3	422	459	156	370	14.5	RE40035
XRE40040		510	40	453.4	428	479	241	531	23.5	RE40040
XRE45025	450	500	25	476.6	464	484	61.7	182	6.6	RE45025
XRE50025	500	550	25	526.6	514	534	65.5	201	7.3	RE50025
XRE50040		600	40	548.8	526	572	239	607	26	RE50040
XRE50050		625	50	561.6	536	587	267	653	41.7	RE50050
XRE60040	600	700	40	650	627	673	264	721	29	RE60040
