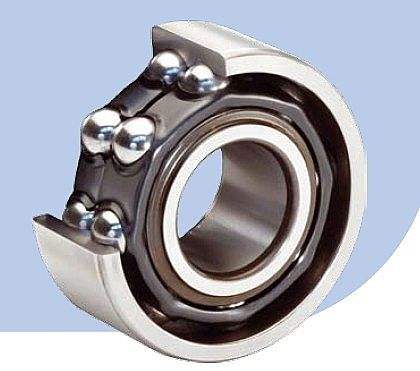

Double Row Angular contact ball bearing - Seals type 2RS

MBY® Angular contact ball bearings have raceways in the inner and outer rings that are offset in relation to each other in the direction of the bearing axis.
These bearings are designed to accommodate combined loads and reach high speeds.

The contact angle α is defined as the angle between the line joining the contact points of the ball and the raceways in the radial plane, and a line perpendicular to the bearing axis.
The load carrying capacity of angular contact ball bearings increases with the increasing of contact angle. Angular contact ball bearings are generally used in pairs or even more with spacers.

MBY® offers comprehensive ranges of angular contact ball bearings, which are available in:
–      Single row and double row
–      Open and sealed types
–      Contact angle of 15, 30 or 40 degree
–      Chrome steel, ceramic or hybrid materials
–      Polyamide, steel and brass cage assemblies
Note： Swipe left or right to view the complete table!

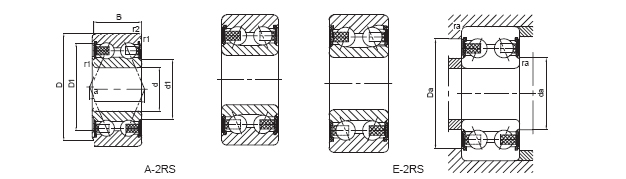

Bearing Code	Boundary Dimensions				Basic Load Rating		Limiting Speed	Other dimension		Distance of working points	Shoulder Dimensions (mm)				Mass
	(mm)				( KN )		(rpm)			(mm)					(kg)
	d	D	B	rr1、2min	Cr	Cor		d1≈	D1≈	a	da(Min.)	da(Max)	Da(Max)	ra(Max)	Approx
3200-2RS	10	30	14	0.6	7.41	4.3	16000	15.8	25	18	15	15.5	25	0.6	0.051
3201-2RS	12	32	15.9	0.6	10.1	5.6	15000	17.2	27.7	20	17	17	27.7	0.6	0.058
3202-2RS	15	35	15.9	0.6	11.2	6.8	12000	20.2	30.7	22	20	20	30.7	0.6	0.066
3203-2RS	17	40	17.5	0.6	14	8.65	10000	23.3	35	25	22	23	35	0.6	0.096
3204-2RS	20	47	20.6	1	18.6	12	9000	27.7	40.9	30	26	27.5	41	1	0.16
3205-2RS	25	52	20.6	1	20.3	14	8000	32.7	45.9	33	31	32.5	46	1	0.18
3206-2RS	30	62	23.8	1	28.1	20	7000	38.7	55.2	38	36	38.5	56	1	0.29
3207-2RS	35	72	27	1.1	37.1	27.5	6000	45.4	63.9	45	42	45	65	1	0.44
3208-2RS	40	80	30.2	1.1	44.9	33.5	5600	47.8	72.1	49	47	47.5	73	1	0.59
3208E-2RS	40	80	30.2	1.1	48.4	48	5600	47.8	72.1	49	47	47.5	73	1	0.64
3209-2RS	45	85	30.2	1.1	47.5	38	5000	52.8	77.1	52	52	52.5	78	1	0.63
3209E-2RS	45	85	30.2	1.1	50.1	53	5000	52.8	77.1	52	52	52.5	78	1	0.69
3210-2RS	50	90	30.2	1.1	47.5	39	4800	57.8	82.1	56	57	57.5	83	1	0.66
3210E-2RS	50	90	30.2	1.1	52.8	58.5	4800	57.8	82.1	56	57	57.5	83	1	0.74
3302-2RS	15	42	19	1	15.1	9.15	10000	23.7	35.7	26	21	23.5	36	1	0.13
3303-2RS	17	47	22.2	1	21.2	12.5	9500	25.7	40.2	29	23	25.5	41	1	0.18
3304-2RS	20	52	22.2	1.1	22.1	14.3	8500	29.9	44	32	27	29.5	45	1	0.22
3305-2RS	25	62	25.4	1.1	31.2	20.8	7500	35.7	53.4	38	32	35.5	55	1	0.35
3306-2RS	30	72	30.2	1.1	41	28.5	6300	39.8	64.1	44	37	39.5	65	1	0.53
3306E-2RS	30	72	30.2	1.1	45.7	42.5	6300	39.8	64.1	44	37	39.5	65	1	0.59
3307-2RS	35	80	34.9	1.5	48.8	34	5600	44.6	70.1	49	44	44.5	71	1.5	0.73
3307E-2RS	35	80	34.9	1.5	53.9	51	5600	44.6	70.1	49	44	44.5	71	1.5	0.79
3308-2RS	40	90	36.5	1.5	59.2	43	5000	50.8	80.1	56	49	50.5	81	1.5	0.95
3308E-2RS	40	90	36.5	1.5	66	64	5000	50.8	80.1	56	49	50.5	81	1.5	1.05
