Model: | Heavy Duty Needle Roller Bearings Without Inner Ring |
---|---|
Brand: | MBY |
Quantity: | |
MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.
MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.
Note:Swipe left or right to view the complete table!

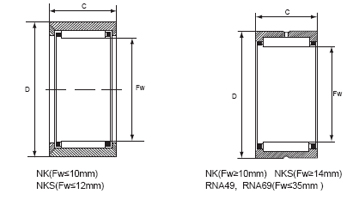

Shaft Diameter | Bearing Designation | Mass Approx | Boundary Dimensions | Basic Load Rating | Limiting Speed | ||||
Current | Original Code | Fw | D | C | Cr Dynamic | Cor Static | Oil | ||
mm | g | mm | N | rpm | |||||
45 | 0 | 46449/38 | 80 | 45 | 58 | 20 | 21600 | 50500 | 7650 |
10 | 0 | 5624097 | 16.6 | 10 | 17 | 15 | 4860 | 7100 | 23500 |
12 | 0 | 5624098 | 15.4 | 12 | 19 | 15 | 6400 | 7100 | 21640 |
22 | 0 | 624703 | 53 | 22 | 35 | 25 | 24500 | 28000 | 14187 |
25 | 0 | 624704 | 100.1 | 25 | 35 | 25 | 14900 | 22400 | 14060 |
37 | 0 | 624706 | 154 | 37 | 52 | 22 | 28500 | 45500 | 9027 |
45 | 0 | 624708 | 75.3 | 45 | 55 | 22 | 20500 | 49600 | 7650 |
50 | 0 | 624708K | 328 | 50 | 65 | 34 | 40000 | 62000 | 8140 |
55 | 0 | 624709 | 210 | 55 | 68 | 25 | 36000 | 68000 | 7625 |
30 | 0 | 624905K | 68 | 30 | 42 | 20 | 15400 | 24500 | 12066 |
23 | 0 | 634704KA | 37.5 | 23 | 30 | 30 | 18600 | 29000 | 15711 |
22 | 0 | 634704L | 42.5 | 22 | 30 | 30 | 17700 | 27000 | 16300 |
15 | 0 | 644302 | 18.2 | 15 | 25 | 12 | 10600 | 13500 | 17144 |
22 | 0 | 644704 | 27.4 | 22 | 28 | 16 | 10500 | 15050 | 15172 |
32 | 0 | 644706 | 193 | 32 | 50 | 35 | 40500 | 63000 | 12000 |
42 | 0 | 644708 | 148 | 42 | 65 | 22 | 31500 | 51000 | 8710 |
25 | 0 | 644804K | 63 | 25 | 33 | 30 | 18800 | 20500 | 14060 |
32 | 0 | 644906 | 42 | 32 | 38 | 11 | 10750 | 30500 | 12000 |
35 | 0 | 644907 | 161 | 35 | 51 | 32 | 43500 | 71000 | 11680 |
20 | 0 | 6624101 | 24.3 | 20 | 28 | 25 | 11000 | 12900 | 12716 |
15 | 0 | 7948/15 | 16.1 | 15 | 22 | 12 | 8200 | 9800 | 8412 |
28 | 0 | F3833 | 99.8 | 28 | 38 | 33 | 33000 | 57000 | 12000 |
10 | NK10/12 TN | 4624097K | 10 | 10 | 17 | 12 | 4750 | 5350 | 23500 |
12 | NK12/12 | 644097 | 11.8 | 12 | 19 | 12 | 6050 | 6400 | 21640 |
12 | NK12/16 | 0 | 16.8 | 12 | 19 | 16 | 8200 | 9800 | 21640 |
14 | NK14/16 | 4624900K | 20.8 | 14 | 22 | 16 | 8260 | 9600 | 18322 |
15 | NK15/12 | 644800K | 18.5 | 15 | 23 | 12 | 8600 | 10070 | 21004 |
16 | NK16/16 | 0 | 20.8 | 16 | 24 | 16 | 9030 | 11900 | 15522 |
16 | NK16/20 | 624701 | 23.9 | 16 | 24 | 20 | 10400 | 16800 | 15522 |
17 | NK17/16 | 644903K | 21.5 | 17 | 25 | 16 | 9000 | 13500 | 14163 |
18 | NK18/20 | 0 | 30.5 | 18 | 26 | 20 | 10500 | 13800 | 13628 |
20 | NK20/16 | 644802 | 25.7 | 20 | 28 | 16 | 11500 | 13400 | 12716 |
20 | NK20/20 | 624802 | 29.3 | 20 | 28 | 20 | 12400 | 21800 | 12716 |
20 | NK202616 | 0 | 20.8 | 20 | 26 | 16 | 9600 | 10800 | 9125 |
20 | NK202620 | 0 | 17.2 | 20 | 26 | 20 | 10500 | 11900 | 9125 |
20 | NK203312SX | 0 | 29.1 | 20 | 33 | 12 | 13000 | 17500 | 11124 |
22 | NK22/16 | NK223016 | 29.2 | 22 | 30 | 16 | 13500 | 18000 | 11527 |
22 | 0 | NK223516 | 34.6 | 22 | 35 | 16 | 18600 | 20800 | 12711 |
22 | 0 | NK223516 | 49.4 | 22 | 35 | 16 | 18600 | 20800 | 16522 |
25 | NK25/16 | 624904 | 30 | 25 | 33 | 16 | 12900 | 20400 | 15000 |
25 | NK25/20 | 644804 | 38.4 | 25 | 33 | 20 | 16800 | 28500 | 15000 |
26 | NK26/16 | 0 | 30 | 26 | 34 | 16 | 15000 | 23000 | 16300 |
26 | NK26/20 | 0 | 40 | 26 | 34 | 20 | 17000 | 30000 | 16300 |
30 | NK30/20 | 644805 | 57.9 | 30 | 40 | 20 | 20600 | 32000 | 12066 |
30 | NK30/30 | 0 | 95 | 30 | 40 | 30 | 31500 | 50000 | 14500 |
32 | NK32/20 | 624705 | 75.4 | 32 | 42 | 20 | 17500 | 33500 | 12066 |
35 | NK35/20 | 644806 | 70 | 32 | 45 | 20 | 13851 | 26900 | 12000 |
40 | NK40/20 | 0 | 78.9 | 40 | 50 | 20 | 19600 | 43000 | 8881 |
40 | NK40/30 | 0 | 120 | 40 | 50 | 30 | 22200 | 51350 | 8881 |
42 | NK42/20 | 0 | 83 | 42 | 52 | 20 | 23900 | 45000 | 10000 |
42 | NK42/30 | 0 | 125 | 42 | 52 | 30 | 27000 | 49000 | 10000 |
43 | NK43/20 | 0 | 84 | 43 | 53 | 20 | 25700 | 75000 | 10000 |
43 | NK43/30 | 0 | 126 | 43 | 53 | 30 | 39000 | 75000 | 10000 |
45 | NK45/20 | 644808 | 81.5 | 45 | 55 | 20 | 19800 | 46500 | 7650 |
50 | NK50/25 | 0 | 167 | 50 | 62 | 25 | 28000 | 67000 | 8140 |
50 | NK50/35 | 0 | 236 | 50 | 62 | 35 | 32000 | 70100 | 8140 |
5 | NK5/10 TN | 0 | 2.9 | 5 | 10 | 10 | 2100 | 1400 | 36780 |
55 | NK55/25 | 0 | 167 | 55 | 68 | 25 | 30600 | 60800 | 7625 |
60 | NK60/25 | 0 | 154 | 60 | 72 | 25 | 39000 | 86000 | 7000 |
8 | NK8/12 TN | 0 | 8.3 | 8 | 15 | 12 | 3050 | 3650 | 29112 |
14 | NKS14 | 0 | 27 | 14 | 25 | 16 | 10400 | 10800 | 17652 |
16 | NKS16 | 0 | 30 | 16 | 28 | 16 | 14900 | 15000 | 20000 |
20 | NKS20 | 0 | 46.8 | 20 | 32 | 20 | 20000 | 22000 | 18000 |
22 | NKS22 | 0 | 60.2 | 22 | 35 | 20 | 21500 | 25000 | 17000 |
25 | NKS25 | 0 | 65 | 25 | 38 | 20 | 25800 | 31000 | 16300 |
28 | NKS28 | 0 | 80 | 28 | 42 | 20 | 25900 | 33500 | 14600 |
32 | NKS32 | 0 | 100 | 32 | 47 | 22 | 31000 | 40000 | 12100 |
15 | RNA152815 | 0 | 31.7 | 15 | 28 | 15 | 13600 | 17200 | 100231 |
28 | RNA283833 | 0 | 99.8 | 28 | 38 | 33 | 33000 | 57000 | 12000 |
14 | RNA4900 | 4624900 | 24.4 | 14 | 22 | 13 | 8060 | 9000 | 18322 |
16 | RNA4901 | 4624901 | 16.6 | 16 | 24 | 13 | 6400 | 8900 | 15522 |
20 | RNA4902 | 4624902 | 20.5 | 20 | 28 | 13 | 10800 | 12800 | 12716 |
22 | RNA4903 | 4644903 | 20.7 | 22 | 30 | 13 | 12000 | 16800 | 16300 |
25 | RNA4904 | 4644904 | 50.8 | 25 | 37 | 17 | 11912 | 16594 | 14060 |
30 | RNA4905 | 4624905 | 57 | 30 | 42 | 17 | 13452 | 20475 | 12066 |
35 | RNA4906 | 4624906 | 62.8 | 35 | 47 | 17 | 17000 | 30500 | 12000 |
42 | RNA4907 | 4624907 | 99.3 | 42 | 55 | 20 | 19800 | 41500 | 8710 |
48 | RNA4908 | 4644908 | 132 | 48 | 62 | 22 | 31036 | 63873 | 8120 |
52 | RNA4909 | 4624909 | 163 | 52 | 68 | 22 | 37000 | 69500 | 7625 |
58 | RNA4910 | 4644910 | 161 | 58 | 72 | 22 | 41000 | 72000 | 7500 |
58 | RNA4910 | 6634910 | 296 | 58 | 72 | 40 | 68000 | 135000 | 7500 |
63 | RNA4911 | 4644911 | 241 | 63 | 80 | 25 | 50600 | 96580 | 6340 |
68 | RNA4912 | 4644912 | 257 | 68 | 85 | 25 | 52800 | 91050 | 6100 |
72 | RNA4913 | 4644913 | 300 | 72 | 90 | 25 | 57500 | 110500 | 6100 |
80 | RNA4914 | 4644914 | 400 | 80 | 100 | 30 | 79000 | 154000 | 5130 |
85 | RNA4915 | 4644915 | 472 | 85 | 105 | 30 | 82000 | 158000 | 5130 |
90 | RNA4916 | 4644916 | 496 | 90 | 110 | 30 | 81000 | 170500 | 4927 |
100 | RNA4917 | 4644917 | 608 | 100 | 120 | 35 | 98000 | 207000 | 4600 |
105 | RNA4918 | 4644918 | 713 | 105 | 125 | 35 | 98500 | 239000 | 4000 |
110 | RNA4919 | 4644919 | 685 | 110 | 130 | 35 | 112000 | 245000 | 3870 |
115 | RNA4920 | 4624920 | 1006 | 115 | 140 | 40 | 120000 | 264000 | 3710 |
125 | RNA4922 | 6634922 | 1200 | 125 | 150 | 40 | 124000 | 270000 | 3350 |
135 | RNA4924 | 4644924 | 1760 | 135 | 165 | 45 | 174000 | 386000 | 2920 |
32 | RNA49/28 | 46449/32K | 80 | 32 | 45 | 17 | 17400 | 30050 | 12000 |
160 | RNA4928 | 4644928 | 2350 | 160 | 190 | 50 | 200000 | 460000 | 2900 |
14 | RNA6900 | 6634900 | 29.1 | 14 | 22 | 22 | 8281 | 11612 | 18322 |
16 | RNA6901 | 6634901 | 28.7 | 16 | 24 | 22 | 14000 | 18600 | 15522 |
20 | RNA6902 | 6634902 | 35.4 | 20 | 28 | 23 | 13000 | 25000 | 12716 |
22 | RNA6903 | 6634903 | 39.8 | 22 | 30 | 23 | 14000 | 19900 | 16300 |
25 | RNA6904 | 6634904 | 97.7 | 25 | 37 | 30 | 26000 | 43000 | 14060 |
30 | RNA6905 | 6634905 | 106.5 | 30 | 42 | 30 | 26300 | 31750 | 12066 |
35 | RNA6906 | 6634906 | 116 | 35 | 47 | 30 | 35000 | 67000 | 12000 |
42 | RNA6907 | 6634907 | 160 | 42 | 55 | 36 | 26000 | 60500 | 8710 |
48 | RNA6908 | 6634908 | 238 | 48 | 62 | 40 | 64000 | 112000 | 8120 |
52 | RNA6909 | 6634909 | 308 | 52 | 68 | 40 | 61500 | 123500 | 7625 |
63 | RNA6911 | 6634911 | 430 | 63 | 80 | 45 | 82560 | 172000 | 6340 |
68 | RNA6912 | 6634912 | 436 | 68 | 85 | 45 | 88500 | 186000 | 6100 |
72 | RNA6913 | 6634913 | 571 | 72 | 90 | 45 | 87600 | 194500 | 6100 |
80 | RNA6914 | 6634914 | 815 | 80 | 100 | 54 | 121000 | 263000 | 5130 |
85 | RNA6915 | 6634915 | 923 | 85 | 105 | 54 | 128000 | 272000 | 5130 |
90 | RNA6916 | 6634916 | 978 | 90 | 110 | 54 | 130500 | 280600 | 4927 |
100 | RNA6917 | 6634917 | 1112 | 100 | 120 | 63 | 161000 | 337000 | 4600 |
105 | RNA6918 | 6634918 | 1250 | 105 | 125 | 63 | 174000 | 38000 | 4000 |
110 | RNA6919 | 6634919 | 1325 | 110 | 130 | 63 | 196000 | 400000 | 3870 |
32 | RNA69/28 | 0 | 125 | 32 | 45 | 30 | 39500 | 61300 | 13100 |
40 | RNA69/32 | 66349/32 | 147 | 40 | 52 | 36 | 25500 | 68500 | 8881 |
96 | 0 | SG-42 | 496 | 96 | 115 | 29 | 73000 | 137000 | 4600 |
