Agricultural Bearings

Product Description

MBY WS(C) serie agricultural bearing, are bearings with special internal configuration, fitting for agricultural and foresty machines. By combining the bearings with kinds of housings, different kinds of simple and economical bearing units are formed, and the bearing installation requirement can be reduced. MBY agricultural bearings can be widely used in agricultural and forestry machines easily.





Note：Swipe left or right to view the complete table!

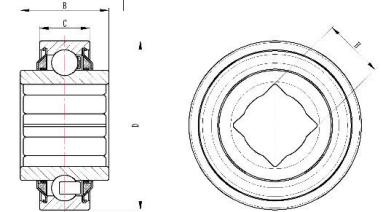

MBY Model No.	Inner Bore	Outring Diameter	Ring Width
	d	D	Inner B	Outring C
WC206R-2ZRS	1.1811/30	2.4409/62	0.9449/24	0.7480/19
WC207R-2ZRS	1.3780/35	2.8346/72	0.9842/25	0.7874/20
WC208-108R-2ZRS	1 1/2"	3.1496	1.6875	0.8268
WC208R-2ZRS	1.5748/40	3.1496/80	1.0630/27	0.8268/21
WC209R-2ZRS	1.7717/45	3.3465/85	1.1811/30	0.8661/22
WC210-115R-2ZRS	1 15/16"	3.5433	1.9375	1.355
WC210R-2ZRS	1.9685/50	3.5433/90	1.1811/30	0.9449/24
WC211R-2ZRS	2.1654/55	3.9370/100	1.4173/36	0.9843/25
WC212R-2ZRS	2.3622/60	4.3307/110	1.4173/36	1.0630/27
WC206-014S-2ZRS	7/8" /	2.4409/62	1.1811/30	0.7480/19
WC207-100S-2ZRS	1" /	2.8346/72	1.1811/30	0.7874/20
WC208-102S-2ZRS	1 1/8" /	3.1496/80	1.4173/36	0.8268/21
WC209-104S-2ZRS	1 1/4" /	3.3465/85	1.4173/36	0.8661/22
WC210-107S-2ZRS	1 7/16" /	3.5433/90	1.4173/36	0.9449/24
WC211-109S-2ZRS	1 9/16" /	3.9370/100	1.4173/36	0.9843/25
WC212-111S-2ZRS	1 11/16" /	4.3307/110	1.4173/36	1.0630/27
WS206R-2ZRS	1.1811/30	2.4409/62	0.9449/24	0.7480/19
WS207R-2ZRS	1.3780/35	2.8346/72	0.9842/25	0.7874/20
WS208-108R-2ZRS	1	3.1496	1.6875	1.1875
WS208R-2ZRS	1.5748/40	3.1496/80	1.0630/27	0.8268/21
WS209R-2ZRS	1.7717/45	3.3465/85	1.1811/30	0.8661/22
WS210R-2ZRS	1.9685/50	3.5433/90	1.1811/30	0.9449/24
WS211R-2ZRS	2.1654/55	3.9370/100	1.4173/36	0.9843/25
WS212R-2ZRS	2.3622/60	4.3307/110	1.4173/36	1.0630/27
WS206-014S-2ZRS	7/8" /	2.4409/62	1.1811/30	0.7480/19
WS207-100S-2ZRS	1" /	2.8346/72	1.1811/30	0.7874/20
WS208-102S-2ZRS	1 1/8" /	3.1496/80	1.4173/36	0.8268/21
WS209-104S-2ZRS	1 1/4" /	3.3465/85	1.4173/36	0.8661/22
WS210-107S-2ZRS	1 7/16" /	3.5433/90	1.4173/36	0.9449/24
WS211-109S-2ZRS	1 9/16" /	3.9370/100	1.4173/36	0.9843/25
WS212-111S-2ZRS	1 11/16" /	4.3307/110	1.4173/36	1.0630/27
