SMA-AJ - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

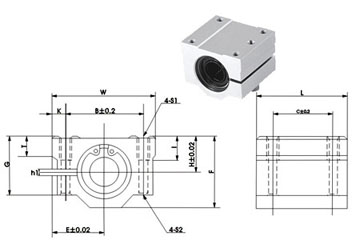

MBY Bearing Code	Shaft Diameter	Main Dimensions/mm							Mounting Dimension/mm						Weight(kg)
		H	E	W	L	F	G	T	B	C	K	S1	S2	l
SMA10AJ	10	13	20	40	35	26	21	8	28	21	6	M5	4.3	12	0.092
SMA12AJ	12	15	21	42	36	28	24	8	30.5	26	5.75	M5	4.3	12	0.102
SMA13AJ	13	15	22	44	39	30	24.5	8	33	26	5.5	M5	4.3	12	0.12
SMA16AJ	16	19	25	50	44	38.5	32.5	9	36	34	7	M5	4.3	12	0.2
SMA20AJ	20	21	27	54	50	41	35	11	40	40	7	M6	5.2	12	0.255
SMA25AJ	25	26	38	76	67	51.5	42	12	54	50	11	M8	7	18	0.6
SMA30AJ	30	30	39	78	72	59.5	49	15	58	58	10	M8	7	18	0.735
SMA35AJ	35	34	45	90	80	68	54	18	70	60	10	M8	7	18	1.1
SMA40AJ	40	40	51	102	90	78	62	20	80	60	11	M10	8.7	25	1.59
SMA50AJ	50	52	61	122	110	102	80	25	100	80	11	M10	8.7	25	3.34
SMA60AJ	60	58	66	132	122	114	94	30	108	90	12	M12	10.7	25	4.72
SMA8AJ	8	11	17	34	30	22	18	6	24	18	5	M4	3.4	8	0.052
