Model: | Heavy Load Deep Groove Ball Bearings |
---|---|
Brand: | MBY |
Availability: | |
Quantity: | |
MBY precision deep groove ball bearings are designed for high precision, low noise, small vibration, high reliability and long life. They are mainly used in various types of electric motors. They are also known as EMQ (Electric Motor Quality) bearings.
EMQ bearings are widely used in household appliances, toys, electric power tools, car motors and other fields. With optimal design, high reliability heat treatment, precision manufacturing processes and high-grade grease, these products perform better on reliability, vibration and noise levels than standard products making them more suitable for electric motor applications. These products can also be applied to most gearbox applications as well.
MBY precision deep groove ball bearings include a variety of shields and seals to meet the many different requirements customers demand. For detailed specification, please feel free to contact MBY.
MBY precision deep groove ball bearings are good quality products with excellent performance. Because of their high precision, high rotating speed, high reliability, low friction and low noise, they are widely used in areas of machine tools, measuring instruments, office machinery, household appliances, various types of electric motors, industrial automation control, etc.
At the same time, MBY can design and manufacture precision deep groove ball bearings according to your requirements with special functions such as mute, special sealing, electric insulation, ultra-high speed, high/low temperature resistance and etc. And MBY will sincerely provide superior application service and professional technical advice to customers.
Note:Swipe left or right to view the complete table!

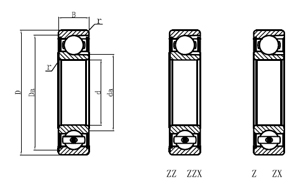

Bearing Designation | Boundary Dimensions | Basic Load Rating | Limiting Speed | Shoulder DiMensions1) | Mass | |||||||||
(mm) | (kN) | (rpm) | (mm) | (kg) | ||||||||||
Open Type | With Steel | d | D | B | r | Cr | Cor | Grease | Oil | da | Da | ra | Approx | |
Shields | (min.) | (min.)(max.) | (max.) | (max.) | ||||||||||
M6203 | M6203 | 17 | 40 | 12 | 0.6 | 10 | 6.6 | 17000 | 21000 | 21 | 0 | 36 | 0.6 | 0.066 |
M6204 | M6204 | 20 | 47 | 14 | 1 | 13.4 | 9.15 | 14000 | 17000 | 25 | 0 | 42 | 1 | 0.108 |
M6205 | M6205 ZZ | 25 | 52 | 15 | 1 | 14.4 | 10.5 | 13000 | 15000 | 30 | 31 | 47 | 1 | 0.13 |
M6206 | M6206 ZZ | 30 | 62 | 16 | 1 | 21.1 | 16.3 | 11000 | 13000 | 35 | 37 | 57 | 1 | 0.204 |
M6207 | M6207 ZZ | 35 | 72 | 17 | 1.1 | 27.8 | 22.2 | 9200 | 11000 | 41.5 | 44 | 65.5 | 1 | 0.295 |
M6208 | M6208 ZZ | 40 | 80 | 18 | 1.1 | 33.1 | 27.8 | 8300 | 10000 | 46.5 | 49.5 | 73.5 | 1 | 0.377 |
M6209 | M6209 ZZ | 45 | 85 | 19 | 1.1 | 37.2 | 31.6 | 7800 | 9400 | 51.5 | 54 | 78.5 | 1 | 0.42 |
M6210 | M6210 ZZ | 50 | 90 | 20 | 1.1 | 38.9 | 34.9 | 7100 | 8500 | 56.5 | 59.5 | 83.5 | 1 | 0.476 |
M6211 | M6211 ZZ | 55 | 100 | 21 | 1.5 | 48.1 | 44.1 | 6300 | 7600 | 63 | 66 | 92 | 1.5 | 0.626 |
M6212 | M6212 ZZ | 60 | 110 | 22 | 1.5 | 58.2 | 54.3 | 5700 | 6900 | 68 | 73 | 102 | 1.5 | 0.815 |
M6213 | M6213 ZZ | 65 | 120 | 23 | 1.5 | 63.5 | 60.1 | 5400 | 6400 | 73 | 78 | 112 | 1.5 | 1.02 |
M6214 | M6214 ZZ | 70 | 125 | 24 | 1.5 | 69 | 66.1 | 5100 | 6100 | 78 | 82 | 117 | 1.5 | 1.11 |
M6215 | M6215 ZZ | 75 | 130 | 25 | 1.5 | 74.8 | 72.4 | 4800 | 5800 | 83 | 86.5 | 122 | 1.5 | 1.22 |
M6216 | M6216 ZZ | 80 | 140 | 26 | 2 | 84.2 | 84.8 | 4500 | 5400 | 89 | 92 | 131 | 2 | 1.45 |
M6217 | M6217 ZZ | 85 | 150 | 28 | 2 | 93.1 | 92.9 | 4200 | 5000 | 94 | 99 | 141 | 2 | 1.85 |
M6218 | M6218 ZZX | 90 | 160 | 30 | 2 | 107 | 107 | 3900 | 4700 | 99 | 105 | 151 | 2 | 2.22 |
M6319 | M6219 ZZX | 95 | 170 | 32 | 2.1 | 121 | 123 | 3700 | 4400 | 106 | 112 | 159 | 2 | 2.71 |
M6220 | M6220 ZZX | 100 | 180 | 34 | 2.1 | 136 | 140 | 3400 | 4100 | 111 | 120 | 169 | 2 | 3.25 |
M6305 | M6305 ZZ | 25 | 62 | 17 | 1.1 | 21.5 | 15.5 | 11000 | 13000 | 31.5 | 34.5 | 55.5 | 1 | 0.236 |
M6306 | M6306 ZZ | 30 | 72 | 19 | 1.1 | 27.9 | 20.7 | 9600 | 12000 | 36.5 | 41.5 | 75.5 | 1 | 0.353 |
M6307 | M6307 ZZ | 35 | 80 | 21 | 1.5 | 37 | 28.9 | 8500 | 10000 | 43 | 46.5 | 72 | 1.5 | 0.47 |
M6308B | M6308B ZZ | 40 | 90 | 23 | 1.5 | 46.4 | 35.8 | 7700 | 9200 | 48 | 52.5 | 82 | 1.5 | 0.646 |
M6309 | M6309 ZZ | 45 | 100 | 25 | 1.5 | 51.1 | 40.6 | 6800 | 8200 | 53 | 59 | 92 | 1.5 | 0.854 |
M6310 | M6310 ZZ | 50 | 110 | 27 | 2 | 64.9 | 52.6 | 6100 | 7300 | 59 | 66 | 101 | 2 | 1.1 |
M6311 | M6311 ZZ | 55 | 120 | 29 | 2 | 79.4 | 67.4 | 5600 | 6700 | 64 | 72 | 111 | 2 | 1.42 |
M6312 | M6312 ZZ | 60 | 130 | 31 | 2.1 | 90.8 | 78.3 | 5200 | 6200 | 71 | 78 | 119 | 2 | 1.76 |
M6313 | M6313 ZZ | 65 | 140 | 33 | 2.1 | 103 | 89.9 | 4800 | 5800 | 76 | 84 | 129 | 2 | 2.15 |
M6314 | M6314 ZZ | 70 | 150 | 35 | 2.1 | 115 | 102 | 4500 | 5400 | 81 | 89 | 139 | 2 | 2.65 |
M6315 | M6315 ZZX | 75 | 160 | 37 | 2.1 | 126 | 116 | 4200 | 5000 | 86 | 95 | 149 | 2 | 3.12 |
M6316 | M6316 ZZX | 80 | 170 | 39 | 2.1 | 136 | 130 | 3900 | 4700 | 91 | 102 | 159 | 2 | 3.71 |
M6317 | M6317 ZZX | 85 | 180 | 41 | 3 | 147 | 145 | 3700 | 4400 | 98 | 108 | 167 | 2.5 | 4.37 |
M6318 | M6318 ZZX | 90 | 190 | 43 | 3 | 158 | 161 | 3500 | 4200 | 103 | 114 | 177 | 2.5 | 5.08 |
M6319 | M6319 ZZX | 95 | 200 | 45 | 3 | 169 | 178 | 3300 | 4000 | 108 | 121 | 187 | 2.5 | 5.86 |
M6320 | M6320 ZZX | 100 | 215 | 47 | 3 | 192 | 212 | 3000 | 3600 | 113 | 130 | 202 | 2.5 | 7.26 |
