SSW-OP Series Linear Motion Bearings

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

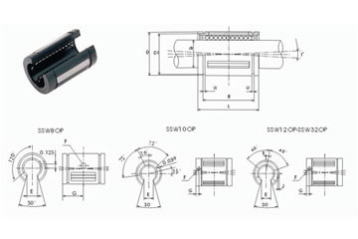

MBY Bearing Code	Number of ball rows	Main Dimensions/mm										Clearance	Basic Load rating
		dr	D	L	B	D1	W	E	F	G	J	H7/h6	c	Co
													(kgf)	(kgf)
SSW10OP	4	5/8	1.125	1.5	1.112	1.059	0.0559	0.375	0.105	0.125	0.039	+0.011~+0.042	182	228
SSW12OP	4	3/4	1.25	1.625	1.272	1.176	0.0559	0.438	0.136	0.125	0.059	+0.012~+0.050	213	268
SSW16OP	5	1	1.5625	2.25	1.886	1.4687	0.0679	0.563	0.136	0.125	0.047	+0.012~+0.050	386	481
SSW20OP	5	1-1/4	2	2.625	2.011	1.8859	0.0679	0.625	0.201	0.1875	0.09	+0.012~+0.050	558	695
SSW24OP	6	1-1/2	2.375	3	2.422	2.2389	0.0859	0.75	0.201	0.1875	0.09	+0.013~+0.055	672	840
SSW32OP	6	2	3	4	3.206	2.8379	0.1029	1	0.265	0.3125	0	+0.013~+0.055	1102	1377
SSW8OP	4	1/2	0.875	1.25	1.032	0.8209	0.0459	0.313	0.136	0.625	0	+0.011~+0.042	104	132
