KBA-S - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

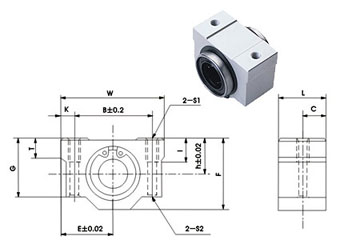

Bearing Code	Shaft Diameter	Main Dimensions							Mounting Dimension						Weight
		h	E	W	L	F	G	T	B	C	K	S1	S2	l
KBA10L	10	13	20	40	68	26	21	8	28	46	6	M5	4.3	12	0.18
KBA12L	12	15	22	44	77	30	24.5	8	33	64	5.5	M5	4.3	12	0.237
KBA16L	16	19	25	50	89	38.5	32.5	9	36	79	7	M5	4.3	12	0.405
KBA20L	20	21	27	54	100	41	35	11	40	90	7	M6	5.2	12	0.51
KBA25L	25	26	38	76	136	51.5	42	12	54	119	11	M8	7	18	1.22
KBA30L	30	30	39	78	154	59.5	49	15	58	132	10	M8	7	18	1.58
KBA40L	40	40	51	102	180	78	62	20	80	150	11	M10	8.7	25	3.18
KBA50L	50	52	61	122	230	102	80	25	100	200	11	M10	8.7	25	6.99
KBA8L	8	11	17	34	58	22	18	6	24	42	5	M4	3.4	8	0.1
