Model: SKB-OP Series Linear Motion Bearings
Brand: MBY
Quantity:

SKB-OP Series Linear Motion Bearings

Product Description
MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.

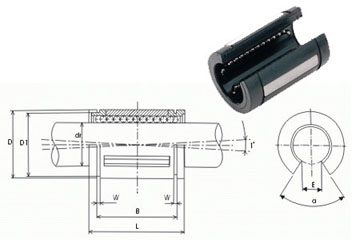

157

Note:Swipe left or right to view the complete table!
MBY Bearing Code Number of ball rows Main Dimensions/mm Clearance Basic Load rating
dr D L D1 B W E α H7/g6 c(kgf) co(kgf)
SKB12OP 4 12 22 32 21 22.7 1.35 6.5 60 0.011~0.042 132 129
SKB16OP 4 16 26 36 24.9 24.7 1.35 9 68 0.011~0.042 167 135
SKB20OP 5 20 32 45 30.3 31.3 1.65 9 55 0.012^ 268 176
SKB25OP 5 25 40 58 37.5 43.8 1.9 11.5 57 0.012^ 399 291
SKB30OP 5 30 47 68 44.5 51.8 1.9 14 57 0.012^ 495 296
SKB40OP 5 40 62 80 59 60.4 2.2 19.5 56 0.013^ 684 602
SKB50OP 5 50 75 100 72 77.4 2.7 22.5 54 0.013^ 1194 827
