Model: Drawn Cup Full Complement Needle Roller Bearings
Brand: MBY
Quantity:

Drawn Cup Full Complement Needle Roller Bearings

Product Description
MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.

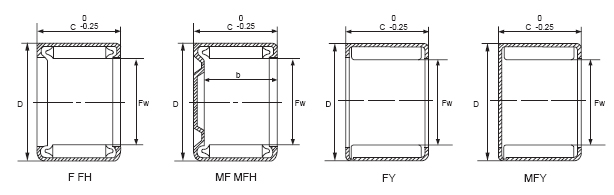

图片10 drawen

Note:Swipe left or right to view the complete table!

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw D C Cr Dynamic Cor Static Oil
mm g mm N rpm
6 F-0608 30941/6 2.5 6 10 8 3080 5800 12000
8 F-0810 50941/8 3.7 8 12 10 4050 7150 13000
9 F-0910 50941/9 4 9 13 10 4900 8050 12000
10 F-1010 50941/10 4.2 10 14 10 5700 9350 11000
12 F-1212 60941/12 6 12 16 12 6380 10900 7100
15 F-1512 30941/15 12 15 21 12 9700 15900 8100
16 F-1616 50941/16 17 16 22 16 14100 25900 7700
17 F-1712 30941/17 13 17 23 12 10600 21600 7300
17 F-1714 941/17 15 17 23 14 12500 22500 7300
17 F-1718 942/17 21 17 23 18 13800 24800 7300
18 F-1816 50941/18 18 18 24 16 15000 29100 6900
20 F-2014 941/20 17 20 26 14 15800 40500 6900
20 F-2020 942/20 26 20 26 20 18800 42500 6900
25 F-2516 941/25 28 25 32 16 18700 37900 5100
25 F-2522 942/25 40 25 32 22 11000 16500 5100
28 F-2820 60941/28 118 28 35 20 25700 58300 4600
30 F-3020 60941/30 42 30 37 20 26800 62500 4300
32 F-3216 40941/32 35 32 39 16 25800 61500 4300
35 F-3520 60941/35 49 35 42 20 24000 69100 3700
40 F-4020 60941/40 56 40 47 20 30300 82600 3300
45 F-4520 0 62 45 52 20 30400 90100 2900
50 F-5020 50941/50 78 50 58 20 35800 98000 2600
10 F10x16x15 942/10 12 10 16 15 6890 11500 7100
12 F12x17x12 941/12 8 12 17 12 8400 11900 7100
12 F12x17x15 942/12 10.5 12 17 15 9000 12500 7100
12 F12x17x18 943/12 13 12 17 18 9800 13500 7100
15 F15x20x12 941/15 10 15 20 12 8400 11900 7100
15 F15x20x16 942/15 13.6 15 20 16 9500 12800 7100
15 F15x20x20 943/15 17.2 15 20 20 10500 16000 7100
20 F20x26x25 943/20 33 20 26 25 20500 35500 6300
25 F25x32x25 943/25 43 25 32 25 11500 18500 5100
25 F25x33x08 Y253308 16.7 25 33 8 12200 16800 4300
30 F30x38x16 941/30 37.5 30 38 16 25500 57500 4600
30 F30x38x24 942/30 37.5 30 38 24 28800 64500 4300
30 F30x38x32 943/30 81.5 30 38 32 34500 78900 4300
35 F35x43x16 941/35 41 35 43 16 23500 68000 3700
35   F35x43x25   942/35 72 35 43 25 38700 86200 3200
35 F35x43x32 943/35 90 35 43 32 40500 97800 3200
6.35 F6.35x11.11x11.13 B-47 3.2 6.35 11.11 11.13 3500 6050 12000
60 F60x68x40 943/60 185 60 68 40 50200 145000 2600
9.52 F9.52x14.29x12.7 B-68 7.5 9.52 14.29 12.7 9000 13300 7100
8 FH-0810 941/8 7 8 14 10 5200 7150 7400
8 FH-0812 942/8 9 8 14 12 4550 7150 7400
10 FH-1010 941/10 6.5 10 16 10 6350 10800 11000
9 FH0910 941/9 6 9 15 10 8000 11500 7100
40 FH4032 942/40 88 40 50 32 42500 108000 2600
40 FH40x50x38 943/40 105 40 50 38 44800 118500 2600
45 FH45x55x38 943/45 140 45 55 38 45800 128000 2900
50 FH50x60x38 943/50 145 50 60 38 50500 145800 2600
9 FH9x15x13 942/9 8 9 15 13 8560 12800 7100
15 FY15x20x20 Y152020 20 15 20 20 10500 16000 7100
30 MF-3020 65941/30 48 30 37 20 26800 62500 4300
6.35 MF6.35x11.11x11.13 M-471 4.1 6.35 11.11 11.13 3500 6050 12000
40 MFH-4032 86942/40 95 40 50 32 42500 108000 2600
