Model: Standard Combined Bearings
Brand: MBY
Quantity:

Standard Combined Bearings

Product Description
MBY Combined Bearings are particularly suitable for truck lift columns and all other convoying systems which require profiles.They can afford load from both axial and radial direction at the same time. With the optimzed structure, the mount space can be saved, and the usage is also simplethat just to weld the pivot in the mount plate,and it is not necessary to dismantle the whole set. The radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial loads,and they come from the combined bearings and maintain the same features of construction.

According to customer’s application, the OD surface can be designed to be flat , crowned and other special ones. With the optimum design and high standard materialMBY combined bearings can support heavy loads and shock loads, and have extended  lifetime.MBY combined bearings are designed for easy installation and maintenance. The special lubrication system allows easy and reliable re-lubricate.MBY produces the whole range of combined bearings, both standard design and non-standard design.Moreover, we can develop combined bearings according to your application, sample or drawing.MBY design engineering and application assistance are a part of our value added services.

MBY Bearing Group can provide series of Combined Bearings :
Standard Combined Bearings
Adjustable Combined Bearings
Combined Bearings for "I" Standard Profiles
Adjustable Combined Bearings for Heavy Industry
JUMBO Combined Bearing
Adjustable Combined Bearings with Eccentric Pin
High Speed combined Bearings
Adjustable Combined Bearings with screw
Adjustable Combined Bearings with Plastic Axial Roller
Adjustable Combined Bearings for Steel Industry
Standard Radial Bearings
Precision Radial Bearing

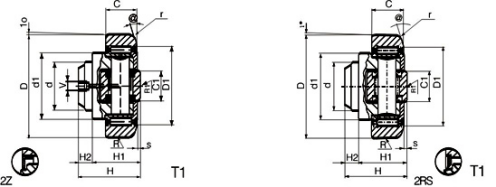

6



Note:Swipe left or right to view the complete table!
Bearing Code Dimensions





Load rating OD on Reference Index
2Z ZRS d D C H H1 H2 D1 C1 d1 S @ r R R1 V C Co Ca Coa request Germany Italy A Italy B
mm mm mm mm mm mm mm mm mm mm degree mm mm mm mm KN KN KN KN mm 2Z 2RS
MBY011-149.2Z MBY011-149.ZRS 60 149 45 86 67 19 120 50 108 5.5 15 3 1500 1000 1/8GAS 151 192 68 71

4.0011-149 MR.191
MBY037-174.2Z MBY037-174.ZRS 80 174 55 95 71 24 141 63 120 7 20 7 1500 1000 1/8GAS 278 518 132 210

4.0037-174

MBY039-185.2Z MBY039-185.ZRS 80 185 55 95 71 24 141 63 120 7 20 7 1500 1000 1/8GAS 278 518 132 210

4.0039-185

MBY054-62.2Z MBY054-62.ZRS 30 62 20 37.5 30.5 7 50 20 42 2.5 20 3 500 500
31 35.5 11.1 11.5 62.5 4.054 4.0054-62 MR.001 MR.021
MBY055-70.2Z MBY055-70.ZRS 35 70.1 23 44 36 8 57 22 48 2.5 20 4.5 500 500 M6X1 45.5 51 14 13 70.4/70.4 4.055 4.0055-70 MR.002 MR.022
MBY056-78.2Z MBY056-78.ZRS 40 77.7 23 48 36.5 11.5 61 26 53 3 20 4.5 500 500 M6X1 48 56.8 18 18 78.1/78.5 4.056 4.0056-78 MR.003 MR.023
MBY058-88.2Z MBY058-88.ZRS 45 88.4 30 57 44 13 68 26 59 3.5 20 4.5 700 700 M6X1 68 72 23 23 88.9 4.058 4.0058-88 MR.005 MR.025
MBY061-108.2Z MBY061-108.ZRS 60 107.7 31 69 55 14 82 34 71 4 20 5 1000 700 M6X1 81 95 31 36 108.2/108.5 4.061 4.0061-108 MR.007 MR.027
MBY062-123.2Z MBY062-123.ZRS 60 123 37 72.3 56 16.3 92 40 80 5 20 5 1000 1000 M6X1 110 132 43 50
4.062 4.0062-123 MR.009 MR.029
MBY063-149.2Z MBY063-149.ZRS 60 149 45 78.5 58.5 20 116 50 108 5.5 15 4 1500 1000 M6X1 151 192 68 71
4.063 4.0063-149 MR.010 MR.030
