Model: | Ceramic Precision Spindle Bearings - HC, HCS types |
---|---|
Brand: | MBY |
Quantity: | |

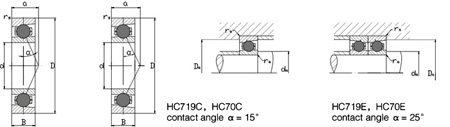

Bearing Code | Dimensions | Mass | Load rating | Speed | dimensions | ||||||||
d | D | B | rsmin | a | (kg) | Cr | Cor | Grease | Oil | da h12 | Da H12 | ramax | |
mm | mm | mm | mm | mm | | KN | KN | rpm | rpm | mm | mm | mm | |
HC7000C.T.P4S.UL | 10 | 26 | 8 | 0.3 | 6 | 0.02 | 1.9 | 1.1 | 90000 | 150000 | 15 | 20.5 | 0.3 |
HC7000E.T.P4S.UL | 10 | 26 | 8 | 0.3 | 8 | 0.02 | 1.8 | 1.06 | 75000 | 120000 | 15 | 20.5 | 0.3 |
HC7001C.T.P4S.UL | 12 | 28 | 8 | 0.3 | 7 | 0.02 | 1.86 | 1.12 | 80000 | 130000 | 17 | 22.5 | 0.3 |
HC7001E.T.P4S.UL | 12 | 28 | 8 | 0.3 | 9 | 0.02 | 1.76 | 1.08 | 70000 | 110000 | 17 | 22.5 | 0.3 |
HC7002C.T.P4S.UL | 15 | 32 | 9 | 0.3 | 8 | 0.03 | 2.6 | 1.7 | 70000 | 110000 | 20 | 26.5 | 0.3 |
HC7002E.T.P4S.UL | 15 | 32 | 9 | 0.3 | 10 | 0.03 | 2.45 | 1.6 | 60000 | 90000 | 20 | 26.5 | 0.3 |
HC7003C.T.P4S.UL | 17 | 35 | 10 | 0.3 | 9 | 0.04 | 2.65 | 1.83 | 63000 | 95000 | 22.5 | 29 | 0.3 |
HC7003E.T.P4S.UL | 17 | 35 | 10 | 0.3 | 11 | 0.04 | 2.5 | 1.73 | 53000 | 80000 | 22.5 | 29 | 0.3 |
HC7004C.T.P4S.UL | 20 | 42 | 12 | 0.6 | 10 | 0.07 | 4.3 | 3.2 | 53000 | 80000 | 27 | 34.5 | 0.6 |
HC7004E.T.P4S.UL | 20 | 42 | 12 | 0.6 | 13 | 0.07 | 4.05 | 3 | 45000 | 67000 | 27 | 34.5 | 0.6 |
HC7005C.T.P4S.UL | 25 | 47 | 12 | 0.6 | 11 | 0.09 | 4.3 | 3.45 | 45000 | 67000 | 32 | 39.5 | 0.6 |
HC7005E.T.P4S.UL | 25 | 47 | 12 | 0.6 | 14 | 0.09 | 4.05 | 3.25 | 38000 | 56000 | 32 | 39.5 | 0.6 |
HC7006C.T.P4S.UL | 30 | 55 | 13 | 1 | 12 | 0.12 | 6 | 4.9 | 38000 | 56000 | 37.5 | 47 | 1 |
HC7006E.T.P4S.UL | 30 | 55 | 13 | 1 | 16 | 0.12 | 5.7 | 4.65 | 32000 | 48000 | 37.5 | 47 | 1 |
HC7007C.T.P4S.UL | 35 | 62 | 14 | 1 | 14 | 0.16 | 6.4 | 5.85 | 34000 | 50000 | 43.5 | 53 | 1 |
HC7007E.T.P4S.UL | 35 | 62 | 14 | 1 | 18 | 0.16 | 6.1 | 5.4 | 28000 | 43000 | 43.5 | 53 | 1 |
HC7008C.T.P4S.UL | 40 | 68 | 15 | 1 | 15 | 0.21 | 6.8 | 6.55 | 30000 | 45000 | 49 | 58.5 | 1 |
HC7008E.T.P4S.UL | 40 | 68 | 15 | 1 | 20 | 0.21 | 6.4 | 6.1 | 26000 | 40000 | 49 | 58.5 | 1 |
HC7009C.T.P4S.UL | 45 | 75 | 16 | 1 | 16 | 0.25 | 8.8 | 8.5 | 26000 | 40000 | 54 | 65.5 | 1 |
HC7009E.T.P4S.UL | 45 | 75 | 16 | 1 | 22 | 0.25 | 8.3 | 8 | 24000 | 38000 | 54 | 65.5 | 1 |
HC7010C.T.P4S.UL | 50 | 80 | 16 | 1 | 17 | 0.27 | 9.15 | 9.15 | 24000 | 38000 | 59 | 70.5 | 1 |
HC7010E.T.P4S.UL | 50 | 80 | 16 | 1 | 23 | 0.27 | 8.65 | 8.5 | 22000 | 36000 | 59 | 70.5 | 1 |
HC7011C.T.P4S.UL | 55 | 90 | 18 | 1.1 | 19 | 0.35 | 12.9 | 13.2 | 22000 | 36000 | 65.5 | 79 | 1 |
HC7011E.T.P4S.UL | 55 | 90 | 18 | 1.1 | 26 | 0.35 | 12.2 | 12.2 | 19000 | 32000 | 65.5 | 79 | 1 |
HC7012C.T.P4S.UL | 60 | 95 | 18 | 1.1 | 19 | 0.37 | 13.4 | 14 | 20000 | 34000 | 70.5 | 84 | 1 |
HC7012E.T.P4S.UL | 60 | 95 | 18 | 1.1 | 27 | 0.38 | 12.7 | 13.2 | 18000 | 30000 | 70.5 | 84 | 1 |
HC7013C.T.P4S.UL | 65 | 100 | 18 | 1.1 | 20 | 0.4 | 13.7 | 15 | 20000 | 34000 | 75.5 | 89 | 1 |
HC7013E.T.P4S.UL | 65 | 100 | 18 | 1.1 | 28 | 0.4 | 13.9 | 14 | 17000 | 28000 | 75.5 | 89 | 1 |
HC7014C.T.P4S.UL | 70 | 110 | 20 | 1.1 | 22 | 0.61 | 18 | 19.6 | 18000 | 30000 | 82 | 97.5 | 1 |
HC7014E.T.P4S.UL | 70 | 110 | 20 | 1.1 | 31 | 0.61 | 17 | 18.3 | 13000 | 20000 | 82 | 97.5 | 1 |
HC7015C.T.P4S.UL | 75 | 115 | 20 | 1.1 | 23 | 0.65 | 18.3 | 20 | 17000 | 28000 | 87 | 102.5 | 1 |
HC7015E.T.P4S.UL | 75 | 115 | 20 | 1.1 | 32 | 0.64 | 17.3 | 18.6 | 15000 | 24000 | 87 | 102.5 | 1 |
HC7016C.T.P4S.UL | 80 | 125 | 22 | 1.1 | 25 | 0.87 | 21.6 | 24.5 | 16000 | 26000 | 93.5 | 111 | 1 |
HC7016E.T.P4S.UL | 80 | 125 | 22 | 1.1 | 35 | 0.87 | 20.4 | 22.8 | 13000 | 20000 | 93.5 | 111 | 1 |
HC7017C.T.P4S.UL | 85 | 130 | 22 | 1.1 | 25 | 0.92 | 22 | 25 | 15000 | 24000 | 98.5 | 116 | 1 |
HC7017E.T.P4S.UL | 85 | 130 | 22 | 1.1 | 36 | 0.92 | 20.8 | 23.2 | 13000 | 20000 | 98.5 | 116 | 1 |
HC7018C.T.P4S.UL | 90 | 140 | 24 | 1.5 | 27 | 1.19 | 26 | 30 | 14000 | 22000 | 105 | 124.5 | 1.5 |
HC7018E.T.P4S.UL | 90 | 140 | 24 | 1.5 | 39 | 1.18 | 24.5 | 28 | 12000 | 19000 | 105 | 124.5 | 1.5 |
HC7019C.T.P4S.UL | 95 | 145 | 24 | 1.5 | 28 | 1.24 | 26 | 31 | 13000 | 20000 | 110 | 129.5 | 1.5 |
HC7019E.T.P4S.UL | 95 | 145 | 24 | 1.5 | 40 | 1.24 | 24.5 | 28.5 | 11000 | 18000 | 110 | 129.5 | 1.5 |
HC7020C.T.P4S.UL | 100 | 150 | 24 | 1.5 | 29 | 1.29 | 26.5 | 31.5 | 12000 | 19000 | 115 | 134.5 | 1.5 |
HC7020E.T.P4S.UL | 100 | 150 | 24 | 1.5 | 41 | 1.29 | 35 | 30 | 11000 | 18000 | 115 | 134.5 | 1.5 |
HC7021C.T.P4S.UL | 105 | 160 | 26 | 2 | 31 | 1.59 | 34 | 40.5 | 12000 | 19000 | 121 | 143.5 | 2 |
HC7021E.T.P4S.UL | 105 | 160 | 26 | 2 | 44 | 1.59 | 32 | 38 | 10000 | 17000 | 121 | 143.5 | 2 |
HC7022C.T.P4S.UL | 110 | 170 | 28 | 2 | 33 | 2.05 | 34.5 | 41.5 | 11000 | 18000 | 128.5 | 151 | 2 |
HC7022E.T.P4S.UL | 110 | 170 | 28 | 2 | 47 | 2.05 | 32.5 | 39 | 9000 | 15000 | 128.5 | 151 | 2 |
HC7024C.T.P4S.UL | 120 | 180 | 28 | 2 | 34 | 2.2 | 35.5 | 44 | 10000 | 17000 | 138.5 | 161 | 2 |
HC7024E.T.P4S.UL | 120 | 180 | 28 | 2 | 49 | 2.2 | 33.5 | 41.5 | 8500 | 14000 | 138.5 | 161 | 2 |
HC7026C.T.P4S.UL | 130 | 200 | 33 | 2 | 39 | 3.52 | 45.5 | 58.5 | 9000 | 15000 | 152 | 177.5 | 2 |
HC7026E.T.P4S.UL | 130 | 200 | 33 | 2 | 55 | 3.51 | 42.5 | 54 | 7500 | 12000 | 152 | 177.5 | 2 |
HC7028C.T.P4S.UL | 140 | 210 | 33 | 2 | 40 | 3.74 | 46.5 | 61 | 8500 | 14000 | 162 | 187.5 | 2 |
HC7028E.T.P4S.UL | 140 | 210 | 33 | 2 | 57 | 3.74 | 44 | 57 | 7000 | 11000 | 162 | 187.5 | 2 |
HC71900C.T.P4S.UL | 10 | 22 | 6 | 0.3 | 5 | 0.01 | 1.37 | 0.76 | 100000 | 170000 | 13.5 | 18 | 0.3 |
HC71900E.T.P4S.UL | 10 | 22 | 6 | 0.3 | 7 | 0.01 | 1.29 | 0.72 | 85000 | 140000 | 13.5 | 18 | 0.3 |
HC71901C.T.P4S.UL | 12 | 24 | 6 | 0.3 | 5 | 0.01 | 1.4 | 0.83 | 90000 | 150000 | 15.5 | 20 | 0.3 |
HC71901E.T.P4S.UL | 12 | 24 | 6 | 0.3 | 7 | 0.01 | 1.34 | 0.8 | 75000 | 120000 | 15.5 | 20 | 0.3 |
HC71902C.T.P4S.UL | 15 | 28 | 7 | 0.3 | 6 | 0.01 | 1.93 | 1.22 | 75000 | 120000 | 18.5 | 24 | 0.3 |
HC71902E.T.P4S.UL | 15 | 28 | 7 | 0.3 | 9 | 0.01 | 1.83 | 1.16 | 63000 | 95000 | 18.5 | 24 | 0.3 |
HC71903C.T.P4S.UL | 17 | 30 | 7 | 0.3 | 7 | 0.02 | 2 | 1.34 | 70000 | 110000 | 20.5 | 26 | 0.3 |
HC71903E.T.P4S.UL | 17 | 30 | 7 | 0.3 | 9 | 0.02 | 1.9 | 1.27 | 60000 | 90000 | 20.5 | 26 | 0.3 |
HC71904C.T.P4S.UL | 20 | 37 | 9 | 0.3 | 8 | 0.04 | 2.7 | 1.96 | 56000 | 85000 | 25 | 31.5 | 0.3 |
HC71904E.T.P4S.UL | 20 | 37 | 9 | 0.3 | 11 | 0.04 | 2.55 | 1.86 | 48000 | 70000 | 25 | 31.5 | 0.3 |
HC71905C.T.P4S.UL | 25 | 42 | 9 | 0.3 | 9 | 0.05 | 2.9 | 2.36 | 48000 | 70000 | 30 | 36.5 | 0.3 |
HC71905E.T.P4S.UL | 25 | 42 | 9 | 0.3 | 12 | 0.05 | 2.75 | 2.2 | 40000 | 60000 | 30 | 36.5 | 0.3 |
HC71906C.T.P4S.UL | 30 | 47 | 9 | 0.3 | 10 | 0.05 | 4.4 | 3.65 | 43000 | 63000 | 34.5 | 42 | 0.3 |
HC71906E.T.P4S.UL | 30 | 47 | 9 | 0.3 | 14 | 0.05 | 4.15 | 3.45 | 36000 | 53000 | 34.5 | 42 | 0.3 |
HC71907C.T.P4S.UL | 35 | 55 | 10 | 0.6 | 11 | 0.08 | 4.8 | 4.4 | 36000 | 53000 | 41 | 48.5 | 0.6 |
HC71907E.T.P4S.UL | 35 | 55 | 10 | 0.6 | 16 | 0.08 | 4.5 | 4.05 | 30000 | 45000 | 41 | 48.5 | 0.6 |
HC71908C.T.P4S.UL | 40 | 62 | 12 | 0.6 | 13 | 0.12 | 5 | 4.8 | 32000 | 48000 | 47 | 54.5 | 0.6 |
HC71908E.T.P4S.UL | 40 | 62 | 12 | 0.6 | 18 | 0.12 | 4.75 | 4.5 | 28000 | 43000 | 47 | 54.5 | 0.6 |
HC71909C.T.P4S.UL | 45 | 68 | 12 | 0.6 | 14 | 0.14 | 6.95 | 6.7 | 28000 | 43000 | 51.5 | 61 | 0.6 |
HC71909E.T.P4S.UL | 45 | 68 | 12 | 0.6 | 19 | 0.14 | 6.55 | 6.3 | 24000 | 38000 | 51.5 | 61 | 0.6 |
HC71910C.T.P4S.UL | 50 | 72 | 12 | 0.6 | 14 | 0.14 | 7.1 | 7.2 | 26000 | 40000 | 56 | 65.5 | 0.6 |
HC71910E.T.P4S.UL | 50 | 72 | 12 | 0.6 | 20 | 0.14 | 6.7 | 6.7 | 22000 | 36000 | 56 | 65.5 | 0.6 |
HC71911C.T.P4S.UL | 55 | 80 | 13 | 1 | 16 | 0.17 | 9.3 | 9.5 | 24000 | 38000 | 61.5 | 73 | 0.6 |
HC71911E.T.P4S.UL | 55 | 80 | 13 | 1 | 22 | 0.17 | 8.8 | 8.8 | 20000 | 34000 | 61.5 | 73 | 0.6 |
HC71912C.T.P4S.UL | 60 | 85 | 13 | 1 | 16 | 0.19 | 9.65 | 10 | 22000 | 36000 | 66.5 | 78 | 0.6 |
HC71912E.T.P4S.UL | 60 | 85 | 13 | 1 | 23 | 0.19 | 9 | 9.5 | 19000 | 32000 | 66.5 | 78 | 0.6 |
HC71913C.T.P4S.UL | 65 | 90 | 13 | 1 | 17 | 0.19 | 9.8 | 10.8 | 20000 | 34000 | 71.5 | 83 | 0.6 |
HC71913E.T.P4S.UL | 65 | 90 | 13 | 1 | 25 | 0.19 | 9.3 | 10 | 18000 | 30000 | 71.5 | 83 | 0.6 |
HC71914C.T.P4S.UL | 70 | 100 | 16 | 1 | 19 | 0.32 | 12.7 | 14 | 19000 | 32000 | 78.5 | 91 | 0.6 |
HC71914E.T.P4S.UL | 70 | 100 | 16 | 1 | 28 | 0.32 | 12 | 13.2 | 16000 | 26000 | 78.5 | 91 | 0.6 |
HC71915C.T.P4S.UL | 75 | 105 | 16 | 1 | 20 | 0.35 | 12.9 | 15 | 18000 | 30000 | 83.5 | 96 | 0.6 |
HC71915E.T.P4S.UL | 75 | 105 | 16 | 1 | 29 | 0.35 | 12.2 | 13.7 | 15000 | 24000 | 83.5 | 96 | 0.6 |
HC71916C.T.P4S.UL | 80 | 110 | 16 | 1 | 21 | 0.32 | 14.6 | 16.6 | 17000 | 28000 | 88 | 101.5 | 0.6 |
HC71916E.T.P4S.UL | 80 | 110 | 16 | 1 | 30 | 0.32 | 13.7 | 15.6 | 15000 | 24000 | 88 | 101.5 | 0.6 |
HC71917C.T.P4S.UL | 85 | 120 | 18 | 1.1 | 23 | 0.51 | 15 | 18 | 16000 | 26000 | 95.5 | 109 | 0.6 |
HC71917E.T.P4S.UL | 85 | 120 | 18 | 1.1 | 33 | 0.51 | 14.3 | 17 | 13000 | 20000 | 95.5 | 109 | 0.6 |
HC71918C.T.P4S.UL | 90 | 125 | 18 | 1.1 | 23 | 0.59 | 16.3 | 19.6 | 15000 | 24000 | 100 | 114.5 | 0.6 |
HC71918E.T.P4S.UL | 90 | 125 | 18 | 1.1 | 34 | 0.59 | 15.6 | 18.6 | 13000 | 20000 | 100 | 114.5 | 0.6 |
HC71919C.T.P4S.UL | 95 | 130 | 18 | 1.1 | 24 | 0.61 | 17 | 20.8 | 14000 | 22000 | 105 | 119.5 | 0.6 |
HC71919E.T.P4S.UL | 95 | 130 | 18 | 1.1 | 35 | 0.61 | 16 | 19.3 | 12000 | 19000 | 105 | 119.5 | 0.6 |
HC71920C.T.P4S.UL | 100 | 140 | 20 | 1.1 | 26 | 0.82 | 20.4 | 25 | 13000 | 20000 | 112 | 127.5 | 0.6 |
HC71920E.T.P4S.UL | 100 | 140 | 20 | 1.1 | 38 | 0.82 | 19 | 23.6 | 11000 | 18000 | 112 | 127.5 | 0.6 |
HC71921C.T.P4S.UL | 105 | 145 | 20 | 1.1 | 27 | 0.85 | 20.8 | 26.5 | 12000 | 19000 | 117 | 132.5 | 0.6 |
HC71921E.T.P4S.UL | 105 | 145 | 20 | 1.1 | 39 | 0.85 | 19.6 | 24.5 | 11000 | 18000 | 117 | 132.5 | 0.6 |
HC71922C.T.P4S.UL | 110 | 150 | 20 | 1.1 | 27 | 0.84 | 24 | 30.5 | 12000 | 19000 | 121 | 138.5 | 0.6 |
HC71922E.T.P4S.UL | 110 | 150 | 20 | 1.1 | 40 | 0.84 | 22.8 | 28.5 | 10000 | 17000 | 121 | 138.5 | 0.6 |
HC71924C.T.P4S.UL | 120 | 165 | 22 | 1.1 | 30 | 1.22 | 25 | 33.5 | 11000 | 18000 | 133.5 | 151 | 0.6 |
HC71924E.T.P4S.UL | 120 | 165 | 22 | 1.1 | 44 | 1.22 | 23.6 | 31 | 9000 | 15000 | 133.5 | 151 | 0.6 |
HC71926C.T.P4S.UL | 130 | 180 | 24 | 1.5 | 33 | 1.59 | 29 | 39 | 9500 | 15000 | 145 | 164.5 | 0.6 |
HC71926E.T.P4S.UL | 130 | 180 | 24 | 1.5 | 48 | 1.59 | 27 | 36.5 | 8000 | 13000 | 145 | 164.5 | 0.6 |
HC71928C.T.P4S.UL | 140 | 190 | 24 | 1.5 | 34 | 1.69 | 29 | 40.5 | 9000 | 15000 | 155 | 174.5 | 0.6 |
HC71928E.T.P4S.UL | 140 | 190 | 24 | 1.5 | 50 | 1.69 | 27.5 | 38 | 7500 | 12000 | 155 | 174.5 | 0.6 |

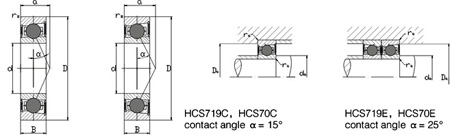

HCS7000C.T.P4S.UL | 10 | 26 | 8 | 0.3 | 6 | 0.02 | 1.9 | 1.1 | 90000 | | 15 | 20.5 | 0.3 |
HCS7000E.T.P4S.UL | 10 | 26 | 8 | 0.3 | 8 | 0.02 | 1.8 | 1.06 | 75000 | | 15 | 20.5 | 0.3 |
HCS7001C.T.P4S.UL | 12 | 28 | 8 | 0.3 | 7 | 0.02 | 1.86 | 1.12 | 80000 | | 17 | 22.5 | 0.3 |
HCS7001E.T.P4S.UL | 12 | 28 | 8 | 0.3 | 9 | 0.02 | 1.76 | 1.08 | 70000 | | 17 | 22.5 | 0.3 |
HCS7002C.T.P4S.UL | 15 | 32 | 9 | 0.3 | 8 | 0.03 | 2.6 | 1.7 | 70000 | | 20 | 26.5 | 0.3 |
HCS7002E.T.P4S.UL | 15 | 32 | 9 | 0.3 | 10 | 0.03 | 2.45 | 1.6 | 60000 | | 20 | 26.5 | 0.3 |
HCS7003C.T.P4S.UL | 17 | 35 | 10 | 0.3 | 9 | 0.04 | 2.65 | 1.83 | 63000 | | 22.5 | 29 | 0.3 |
HCS7003E.T.P4S.UL | 17 | 35 | 10 | 0.3 | 11 | 0.04 | 2.5 | 1.73 | 53000 | | 22.5 | 29 | 0.3 |
HCS7004C.T.P4S.UL | 20 | 42 | 12 | 0.6 | 10 | 0.07 | 4.3 | 3.2 | 53000 | | 27 | 34.5 | 0.6 |
HCS7004E.T.P4S.UL | 20 | 42 | 12 | 0.6 | 13 | 0.07 | 4.05 | 3 | 45000 | | 27 | 34.5 | 0.6 |
HCS7005C.T.P4S.UL | 25 | 47 | 12 | 0.6 | 11 | 0.09 | 4.3 | 3.45 | 45000 | | 32 | 39.5 | 0.6 |
HCS7005E.T.P4S.UL | 25 | 47 | 12 | 0.6 | 14 | 0.09 | 4.05 | 3.25 | 38000 | | 32 | 39.5 | 0.6 |
HCS7006C.T.P4S.UL | 30 | 55 | 13 | 1 | 12 | 0.12 | 6 | 4.9 | 38000 | | 37.5 | 47 | 1 |
HCS7006E.T.P4S.UL | 30 | 55 | 13 | 1 | 16 | 0.12 | 5.7 | 4.65 | 32000 | | 37.5 | 47 | 1 |
HCS7007C.T.P4S.UL | 35 | 62 | 14 | 1 | 14 | 0.17 | 6.4 | 5.85 | 34000 | | 43.5 | 53 | 1 |
HCS7007E.T.P4S.UL | 35 | 62 | 14 | 1 | 18 | 0.16 | 6.1 | 5.4 | 28000 | | 43.5 | 53 | 1 |
HCS7008C.T.P4S.UL | 40 | 68 | 15 | 1 | 15 | 0.21 | 6.8 | 6.55 | 30000 | | 49 | 58.5 | 1 |
HCS7008E.T.P4S.UL | 40 | 68 | 15 | 1 | 20 | 0.21 | 6.4 | 6.1 | 26000 | | 49 | 58.5 | 1 |
HCS7009C.T.P4S.UL | 45 | 75 | 16 | 1 | 16 | 0.25 | 8.8 | 8.5 | 26000 | | 54 | 65.5 | 1 |
HCS7009E.T.P4S.UL | 45 | 75 | 16 | 1 | 22 | 0.25 | 8.3 | 8 | 24000 | | 54 | 65.5 | 1 |
HCS7010C.T.P4S.UL | 50 | 80 | 16 | 1 | 17 | 0.27 | 9.15 | 9.15 | 24000 | | 59 | 70.5 | 1 |
HCS7010E.T.P4S.UL | 50 | 80 | 16 | 1 | 23 | 0.27 | 8.65 | 8.5 | 22000 | | 59 | 70.5 | 1 |
HCS7011C.T.P4S.UL | 55 | 90 | 18 | 1.1 | 19 | 0.35 | 12.9 | 13.2 | 22000 | | 65.5 | 79 | 1 |
HCS7011E.T.P4S.UL | 55 | 90 | 18 | 1.1 | 26 | 0.35 | 12.2 | 12.2 | 19000 | | 65.5 | 79 | 1 |
HCS7012C.T.P4S.UL | 60 | 95 | 18 | 1.1 | 19 | 0.37 | 13.4 | 14 | 20000 | | 70.5 | 84 | 1 |
HCS7012E.T.P4S.UL | 60 | 95 | 18 | 1.1 | 27 | 0.38 | 12.7 | 13.2 | 18000 | | 70.5 | 84 | 1 |
HCS7013C.T.P4S.UL | 65 | 100 | 18 | 1.1 | 20 | 0.4 | 13.7 | 15 | 20000 | | 75.5 | 89 | 1 |
HCS7013E.T.P4S.UL | 65 | 100 | 18 | 1.1 | 28 | 0.4 | 13.9 | 14 | 17000 | | 75.5 | 89 | 1 |
HCS7014C.T.P4S.UL | 70 | 110 | 20 | 1.1 | 22 | 0.61 | 18 | 19.6 | 18000 | | 82 | 97.5 | 1 |
HCS7014E.T.P4S.UL | 70 | 110 | 20 | 1.1 | 31 | 0.61 | 17 | 18.3 | 13000 | | 82 | 97.5 | 1 |
HCS7015C.T.P4S.UL | 75 | 115 | 20 | 1.1 | 23 | 0.65 | 18.3 | 20 | 17000 | | 87 | 102.5 | 1 |
HCS7015E.T.P4S.UL | 75 | 115 | 20 | 1.1 | 32 | 0.64 | 17.3 | 18.6 | 15000 | | 87 | 102.5 | 1 |
HCS7016C.T.P4S.UL | 80 | 125 | 22 | 1.1 | 25 | 0.87 | 21.6 | 24.5 | 16000 | | 93.5 | 111 | 1 |
HCS7016E.T.P4S.UL | 80 | 125 | 22 | 1.1 | 35 | 0.87 | 20.4 | 22.8 | 13000 | | 93.5 | 111 | 1 |
HCS7017C.T.P4S.UL | 85 | 130 | 22 | 1.1 | 25 | 0.92 | 22 | 25 | 15000 | | 98.5 | 116 | 1 |
HCS7017E.T.P4S.UL | 85 | 130 | 22 | 1.1 | 36 | 0.92 | 20.8 | 23.2 | 13000 | | 98.5 | 116 | 1 |
HCS7018C.T.P4S.UL | 90 | 140 | 24 | 1.5 | 27 | 1.19 | 26 | 30 | 14000 | | 105 | 124.5 | 1.5 |
HCS7018E.T.P4S.UL | 90 | 140 | 24 | 1.5 | 39 | 1.18 | 24.5 | 28 | 12000 | | 105 | 124.5 | 1.5 |
HCS7019C.T.P4S.UL | 95 | 145 | 24 | 1.5 | 28 | 1.24 | 26 | 31 | 13000 | | 110 | 129.5 | 1.5 |
HCS7019E.T.P4S.UL | 95 | 145 | 24 | 1.5 | 40 | 1.24 | 24.5 | 28.5 | 11000 | | 110 | 129.5 | 1.5 |
HCS7020C.T.P4S.UL | 100 | 150 | 24 | 1.5 | 29 | 1.29 | 26.5 | 31.5 | 12000 | | 115 | 134.5 | 1.5 |
HCS7020E.T.P4S.UL | 100 | 150 | 24 | 1.5 | 41 | 1.29 | 35 | 30 | 11000 | | 115 | 134.5 | 1.5 |
HCS7021C.T.P4S.UL | 105 | 160 | 26 | 2 | 31 | 1.59 | 34 | 40.5 | 12000 | | 121 | 143.5 | 2 |
HCS7021E.T.P4S.UL | 105 | 160 | 26 | 2 | 44 | 1.59 | 32 | 38 | 10000 | | 121 | 143.5 | 2 |
HCS7022C.T.P4S.UL | 110 | 170 | 28 | 2 | 33 | 2.05 | 34.5 | 41.5 | 11000 | | 128.5 | 151 | 2 |
HCS7022E.T.P4S.UL | 110 | 170 | 28 | 2 | 47 | 2.05 | 32.5 | 39 | 9000 | | 128.5 | 151 | 2 |
HCS7024C.T.P4S.UL | 120 | 180 | 28 | 2 | 34 | 2.2 | 35.5 | 44 | 10000 | | 138.5 | 161 | 2 |
HCS7024E.T.P4S.UL | 120 | 180 | 28 | 2 | 49 | 2.2 | 33.5 | 41.5 | 8500 | | 138.5 | 161 | 2 |
HCS7026C.T.P4S.UL | 130 | 200 | 33 | 2 | 39 | 3.52 | 45.5 | 58.5 | 9000 | | 152 | 177.5 | 2 |
HCS7026E.T.P4S.UL | 130 | 200 | 33 | 2 | 55 | 3.51 | 42.5 | 54 | 7500 | | 152 | 177.5 | 2 |
HCS7028C.T.P4S.UL | 140 | 210 | 33 | 2 | 40 | 3.74 | 46.5 | 61 | 8500 | | 162 | 187.5 | 2 |
HCS7028E.T.P4S.UL | 140 | 210 | 33 | 2 | 57 | 3.74 | 44 | 57 | 7000 | | 162 | 187.5 | 2 |
HCS71900C.T.P4S.UL | 10 | 22 | 6 | 0.3 | 5 | 0.01 | 1.37 | 0.76 | 100000 | | 13.5 | 18 | 0.3 |
HCS71900E.T.P4S.UL | 10 | 22 | 6 | 0.3 | 7 | 0.01 | 1.29 | 0.72 | 85000 | | 13.5 | 18 | 0.3 |
HCS71901C.T.P4S.UL | 12 | 24 | 6 | 0.3 | 5 | 0.01 | 1.4 | 0.83 | 90000 | | 15.5 | 20 | 0.3 |
HCS71901E.T.P4S.UL | 12 | 24 | 6 | 0.3 | 7 | 0.01 | 1.34 | 0.8 | 75000 | | 15.5 | 20 | 0.3 |
HCS71902C.T.P4S.UL | 15 | 28 | 7 | 0.3 | 6 | 0.01 | 1.93 | 1.22 | 75000 | | 18.5 | 24 | 0.3 |
HCS71902E.T.P4S.UL | 15 | 28 | 7 | 0.3 | 9 | 0.01 | 1.83 | 1.16 | 63000 | | 18.5 | 24 | 0.3 |
HCS71903C.T.P4S.UL | 17 | 30 | 7 | 0.3 | 7 | 0.02 | 2 | 1.34 | 70000 | | 20.5 | 26 | 0.3 |
HCS71903E.T.P4S.UL | 17 | 30 | 7 | 0.3 | 9 | 0.02 | 1.9 | 1.27 | 60000 | | 20.5 | 26 | 0.3 |
HCS71904C.T.P4S.UL | 20 | 37 | 9 | 0.3 | 8 | 0.04 | 2.7 | 1.96 | 56000 | | 25 | 31.5 | 0.3 |
HCS71904E.T.P4S.UL | 20 | 37 | 9 | 0.3 | 11 | 0.04 | 2.55 | 1.86 | 48000 | | 25 | 31.5 | 0.3 |
HCS71905C.T.P4S.UL | 25 | 42 | 9 | 0.3 | 9 | 0.05 | 2.9 | 2.36 | 48000 | | 30 | 36.5 | 0.3 |
HCS71905E.T.P4S.UL | 25 | 42 | 9 | 0.3 | 12 | 0.05 | 2.75 | 2.2 | 40000 | | 30 | 36.5 | 0.3 |
HCS71906C.T.P4S.UL | 30 | 47 | 9 | 0.3 | 10 | 0.05 | 4.4 | 3.65 | 43000 | | 34.5 | 42 | 0.3 |
HCS71906E.T.P4S.UL | 30 | 47 | 9 | 0.3 | 14 | 0.05 | 4.15 | 3.45 | 36000 | | 34.5 | 42 | 0.3 |
HCS71907C.T.P4S.UL | 35 | 55 | 10 | 0.6 | 11 | 0.08 | 4.8 | 4.4 | 36000 | | 41 | 48.5 | 0.6 |
HCS71907E.T.P4S.UL | 35 | 55 | 10 | 0.6 | 16 | 0.08 | 4.5 | 4.05 | 30000 | | 41 | 48.5 | 0.6 |
HCS71908C.T.P4S.UL | 40 | 62 | 12 | 0.6 | 13 | 0.12 | 5 | 4.8 | 32000 | | 47 | 54.5 | 0.6 |
HCS71908E.T.P4S.UL | 40 | 62 | 12 | 0.6 | 18 | 0.12 | 4.75 | 4.5 | 28000 | | 47 | 54.5 | 0.6 |
HCS71909C.T.P4S.UL | 45 | 68 | 12 | 0.6 | 14 | 0.14 | 6.95 | 6.7 | 28000 | | 51.5 | 61 | 0.6 |
HCS71909E.T.P4S.UL | 45 | 68 | 12 | 0.6 | 19 | 0.14 | 6.55 | 6.3 | 24000 | | 51.5 | 61 | 0.6 |
HCS71910C.T.P4S.UL | 50 | 72 | 12 | 0.6 | 14 | 0.14 | 7.1 | 7.2 | 26000 | | 56 | 65.5 | 0.6 |
HCS71910E.T.P4S.UL | 50 | 72 | 12 | 0.6 | 20 | 0.14 | 6.7 | 6.7 | 22000 | | 56 | 65.5 | 0.6 |
HCS71911C.T.P4S.UL | 55 | 80 | 13 | 1 | 16 | 0.17 | 9.3 | 9.5 | 24000 | | 61.5 | 73 | 0.6 |
HCS71911E.T.P4S.UL | 55 | 80 | 13 | 1 | 22 | 0.17 | 8.8 | 8.8 | 20000 | | 61.5 | 73 | 0.6 |
HCS71912C.T.P4S.UL | 60 | 85 | 13 | 1 | 16 | 0.19 | 9.65 | 10 | 22000 | | 66.5 | 78 | 0.6 |
HCS71912E.T.P4S.UL | 60 | 85 | 13 | 1 | 23 | 0.19 | 9 | 9.5 | 19000 | | 66.5 | 78 | 0.6 |
HCS71913C.T.P4S.UL | 65 | 90 | 13 | 1 | 17 | 0.19 | 9.8 | 10.8 | 20000 | | 71.5 | 83 | 0.6 |
HCS71913E.T.P4S.UL | 65 | 90 | 13 | 1 | 25 | 0.19 | 9.3 | 10 | 18000 | | 71.5 | 83 | 0.6 |
HCS71914C.T.P4S.UL | 70 | 100 | 16 | 1 | 19 | 0.32 | 12.7 | 14 | 19000 | | 78.5 | 91 | 0.6 |
HCS71914E.T.P4S.UL | 70 | 100 | 16 | 1 | 28 | 0.32 | 12 | 13.2 | 16000 | | 78.5 | 91 | 0.6 |
HCS71915C.T.P4S.UL | 75 | 105 | 16 | 1 | 20 | 0.35 | 12.9 | 15 | 18000 | | 83.5 | 96 | 0.6 |
HCS71915E.T.P4S.UL | 75 | 105 | 16 | 1 | 29 | 0.35 | 12.2 | 13.7 | 15000 | | 83.5 | 96 | 0.6 |
HCS71916C.T.P4S.UL | 80 | 110 | 16 | 1 | 21 | 0.32 | 14.6 | 16.6 | 17000 | | 88 | 101.5 | 0.6 |
HCS71916E.T.P4S.UL | 80 | 110 | 16 | 1 | 30 | 0.32 | 13.7 | 15.6 | 15000 | | 88 | 101.5 | 0.6 |
HCS71917C.T.P4S.UL | 85 | 120 | 18 | 1.1 | 23 | 0.51 | 15 | 18 | 16000 | | 95.5 | 109 | 0.6 |
HCS71917E.T.P4S.UL | 85 | 120 | 18 | 1.1 | 33 | 0.51 | 14.3 | 17 | 13000 | | 95.5 | 109 | 0.6 |
HCS71918C.T.P4S.UL | 90 | 125 | 18 | 1.1 | 23 | 0.59 | 16.3 | 19.6 | 15000 | | 100 | 114.5 | 0.6 |
HCS71918E.T.P4S.UL | 90 | 125 | 18 | 1.1 | 34 | 0.59 | 15.6 | 18.6 | 13000 | | 100 | 114.5 | 0.6 |
HCS71919C.T.P4S.UL | 95 | 130 | 18 | 1.1 | 24 | 0.61 | 17 | 20.8 | 14000 | | 105 | 119.5 | 0.6 |
HCS71919E.T.P4S.UL | 95 | 130 | 18 | 1.1 | 35 | 0.61 | 16 | 19.3 | 12000 | | 105 | 119.5 | 0.6 |
HCS71920C.T.P4S.UL | 100 | 140 | 20 | 1.1 | 26 | 0.82 | 20.4 | 25 | 13000 | | 112 | 127.5 | 0.6 |
HCS71920E.T.P4S.UL | 100 | 140 | 20 | 1.1 | 38 | 0.82 | 19 | 23.6 | 11000 | | 112 | 127.5 | 0.6 |
HCS71921C.T.P4S.UL | 105 | 145 | 20 | 1.1 | 27 | 0.85 | 20.8 | 26.5 | 12000 | | 117 | 132.5 | 0.6 |
HCS71921E.T.P4S.UL | 105 | 145 | 20 | 1.1 | 39 | 0.85 | 19.6 | 24.5 | 11000 | | 117 | 132.5 | 0.6 |
HCS71922C.T.P4S.UL | 110 | 150 | 20 | 1.1 | 27 | 0.84 | 24 | 30.5 | 12000 | | 121 | 138.5 | 0.6 |
HCS71922E.T.P4S.UL | 110 | 150 | 20 | 1.1 | 40 | 0.84 | 22.8 | 28.5 | 10000 | | 121 | 138.5 | 0.6 |
HCS71924C.T.P4S.UL | 120 | 165 | 22 | 1.1 | 30 | 1.22 | 25 | 33.5 | 11000 | | 133.5 | 151 | 0.6 |
HCS71924E.T.P4S.UL | 120 | 165 | 22 | 1.1 | 44 | 1.22 | 23.6 | 31 | 9000 | | 133.5 | 151 | 0.6 |
HCS71926C.T.P4S.UL | 130 | 180 | 24 | 1.5 | 33 | 1.59 | 29 | 39 | 9500 | | 145 | 164.5 | 0.6 |
HCS71926E.T.P4S.UL | 130 | 180 | 24 | 1.5 | 48 | 1.59 | 27 | 36.5 | 8000 | | 145 | 164.5 | 0.6 |
HCS71928C.T.P4S.UL | 140 | 190 | 24 | 1.5 | 34 | 1.69 | 29 | 40.5 | 9000 | | 155 | 174.5 | 0.6 |
HCS71928E.T.P4S.UL | 140 | 190 | 24 | 1.5 | 50 | 1.69 | 27.5 | 38 | 7500 | | 155 | 174.5 | 0.6 |
