Model: Single Row Taper Roller Bearings (Metric Size)
Brand: MBY
Quantity:

Single Row Taper Roller Bearings (Metric Size)

Product Description
MBY® tapered roller bearings are produced by MBY® in many designs and sizes to match their many uses.These can be grouped as follows
-       single row tapered roller bearings (metric size)
-       single row tapered roller bearings (inch size)
-       double row tapered roller bearings
Design Features
Tapered roller bearings are designed to take the combination of radial and axial load.
Tapered roller bearings are available in both inch size and metric size.
Tapered roller bearings have separable outer ring and inner ring assembly, interchangeable, easy to fit and maintenance.
MBY® precision tapered roller bearings are designed to reach V1 grade noise level, which make the quieter running of automobile engine and gearbox.

MBY® tapered roller bearings have tapered inner and outer ring raceways between which tapered rollers are arranged. The projection lines of all the tapered surfaces meet at a common point on the bearing axis. Their design makes tapered roller bearings particularly suitable for the accommodation of combined (radial and axial) loads. The axial load carrying capacity of the bearings is largely determined by the contact angle ; the larger contact angle the greater axial load carrying capacity .
Tapered roller bearings are generally separable, i.e. the cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup (outer ring).
MBY® tapered roller bearings have the logarithmic contact profile that provides optimum stress distribution over the roller/raceway contacts. The special design of the sliding surfaces of the guide flange and large roller ends considerably promote lubricant film formation in the roller end/flange contacts. The resulting benefits include increased operational reliability and reduced sensitivity to misalignment.
MBY® Tapered Roller Bearings have tapered inner and outer ring racesways between which tapered rollers are arranged.Both of which have single and double row structures.With the higher precision than P5 standard, they have high dimension and running accurancy accordingly. Tapered roller bearings with high speed and long lifespan are always used in Automobile, Gearbox, Main shaft of machine tool, Construction machineries, Rolling mill equipment.
Cages
MBY® tapered roller bearings are fitted with one of the following cages.
- A pressed window-type steel cage, roller centred.
- An injection moulded window-type cage of glass fibre reinforced polyamide 6, 6, roler centred.
- A steel pin-type cage

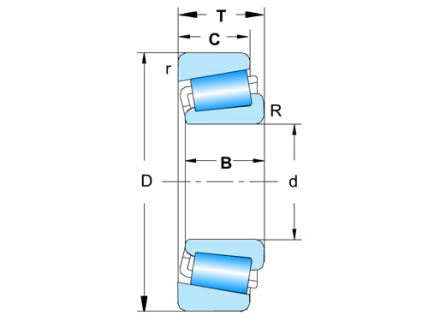

图片9single
Note:Swipe left or right to view the complete table!
Bearing Dimension(mm) Parameters Load Rating(KN) Speed(r/min) Weight(KG)
Code d D T B C Rsmin rsmin e Y Y0 Dynamic Static Greas Oil
90381/90744 96.838 188.921 50.8 46.038 31.75 3.5 3.3 0.87 0.7 0.38 220 350 1900 2800 5.5
JM822049/JM822010 110 165 35 35 26.5 3 2.5 0.49 1.2 0.67 195 325 1900 2800 2.5
71450/71750 114.3 190.5 47.625 49.212 34.925 2.9 2.8 0.42 1.4 0.79 300 465 1700 2400 5.1
HH224346/HH2243010 114.3 212.75 66.675 66.675 53.975 7 3.3 0.33 1.8 1.01 500 775 1700 2400 10.1
71453/71750 115.087 190.5 47.625 49.212 34.925 2.9 2.8 0.42 1.4 0.79 300 465 1700 2400 5.1
HH228344/HH228310 123.825 254 77.788 82.55 61.912 9.7 6.4 0.32 1.9 1.03 795 1150 1700 2400 18.8
HH228349/HH228310 127 254 77.788 82.55 61.912 9.7 6.4 0.32 1.9 1.03 750 1150 1700 2400 18.2
EE420751/421437 190.5 365.049 92.075 88.897 63.5 6.4 3.3 0.4 1.5 0.82 1090 1595 800 14100 38.5
JHM840449/JHM840410 200 300 65 62 51 3 1.5 0.53 1.1 0.62 600 1105 850 1200 15.2
HH249949/HH249910 247.65 406.4 115.888 117.475 93.622 6.4 6.4 0.33 1.8 1 1580 3010 670 900 60.5
53830/P6 381 479.425 49.213 47.625 34.925 6.4 3.3 0.38 1.6 0.88 580 1350 600 750 19
EE108065/108142 165.100 361.950 106.362 104.775 76.200 13.5 3.3 0.33 1.79 0.99 1240 1690

47.20
EE243196/243250 498.475 634.873 80.962 80.962 63.5 6.4 3.3 0.34 1.7 0.96 1375 1980 360 480 62.3
LL778149/LL778110 584.2 685.8 49.212 49.212 34.925 3.5 3.3 0.44 1.4 0.76 655 1800 340 450 28.5
L183448/L183410 759.925 889 88.9 88.9 72 3.3 3.3 0.32 1.9 1.04 1830 5510 260 360 89.8
L183449/L183410 762 889 88.9 88.9 72 3.3 3.3 0.32 1.9 1.04 1830 5510 260 360 88.1
EE763330/763410 838.2 1041.4 93.622 88.9 66.675 6.4 6.4 0.43 1.4 0.76 2280 6280 200 260 168
