Model: SBPFL2, SAPLF2 Series
Brand: MBY
Quantity:

SBPFL2, SAPLF2 Series

Product Description
MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.
They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.
Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.
MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.

MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.
 The housing are mainly casting or pressed steel.

 The bearing unit are compact in design with perfect sealing devices .
they can align with easy during operation and can be conveniently mounted or dismounted.

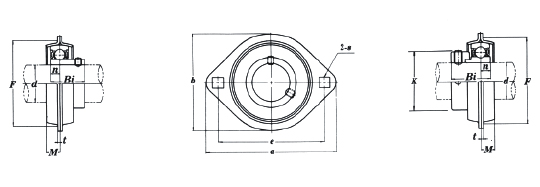

68


Note:Swipe left or right to view the complete table!
Unit No. Dimensions(mm) Bolt Used(mm) Bearing No. Housing No. Mass(kg)
d H J A2 L N t S S1 B B1 d1 SBPFL SAPFL
205 25 95 76 10 71 9 2 7.5 7.5 27 30.5 38.1 5/16 SA205 PFL205 0.38 0.32
206 30 113 90.5 11 84 10.5 2.5 8 8 29 33.9 44.5 3/8 SA206 PFL206 0.38 0.41
207 35 122 100 12 94 10.5 2.5 8.5 8.5 32 37.5 55.6 3/8 SA207 PFL207 0.64 0.69
201 12 81 63.5 7 59 7.5 2 6 6.5 22 28.6 28.6 1/4 SB201 PFL203 0.2 0.22
202 15 81 63.5 7 59 7.5 2 6 6.5 22 28.6 28.6 1/4 SB202 PFL203 0.2 0.22
203 17 81 63.5 7 59 7.5 2 6 6.5 22 28.6 28.6 1/4 SB203 PFL203 0.2 0.21
204 20 90 71.5 8.5 67 9 2 7 7 25 29.5 33.3 5/16 SB204 PFL204 0.24 0.25
