Single Row 4 Point Contact Ball Slewing Bearing - HS Series

Product Description

MBY slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction. Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design.Slewing rings are sealed on both sides,lubricated with high quality grease,can be relubricated via lubrication nipples and are particularly easy to install.

MBY slewing ring bearings are available in many designs with internal, external or without gear. The low cross section,heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Note：Swipe left or right to view the complete table!

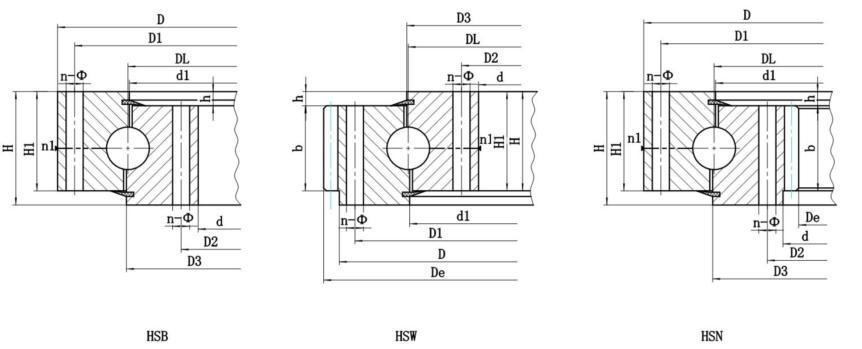

Bearing Code			Configuration Size			Mounting Size				Structure Size					Teeth Data
no teeth	outer teeth	inner teeth	D	d	H	D1	D2	n	Ø	n1	D3	d1	H1	h	b	x
DL	DL	DL	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm
mm	mm	mm
HSB.25.625	HSW.25.625	HSN.25.625	725	525	80	685	565	18	18	3	626	624	68	12	60	1.4
HSB.25.625	HSW.25.625A	HSN.25.625A	725	525	80	685	565	18	18	3	626	624	68	12	60	1.15
HSB.25.720	HSW.25.720	HSN.25.720	820	620	80	780	660	18	18	3	721	719	68	12	60	1.4
HSB.25.720	HSW.25.720A	HSN.25.720A	820	620	80	780	660	18	18	3	721	719	68	12	60	1
HSB.30.1020	HSW.30.1020	HSN.30.1020	1170	875	95	1120	930	24	22	4	1021	1018	80	15	70	1.4
HSB.30.1020	HSW.30.1020A	HSN.30.1020A	1170	875	95	1120	930	24	22	4	1021	1018	80	15	70	1.15
HSB.30.1220	HSW.30.1220	HSN.30.1220	1365	1075	120	1310	1130	36	24	6	1221	1218	105	15	90	1.4
HSB.30.1220	HSW.30.1220A	HSN.30.1220A	1365	1075	120	1310	1130	36	24	6	1221	1218	105	15	90	1
HSB.30.820	HSW.30.820	HSN.30.820	940	705	95	893	749	24	20	4	821	818	83	12	70	1.4
HSB.30.820	HSW.30.820A	HSN.30.820A	940	705	95	893	749	24	20	4	821	818	83	12	70	1
HSB.30.880	HSW.30.880	HSN.30.880	1000	760	95	956	800	24	20	4	881	878	83	12	70	1.15
HSB.30.880	HSW.30.880A	HSN.30.880A	1000	760	95	956	800	24	20	4	881	878	83	12	70	1
HSB.35.1250	HSW.35.1225A	HSN.35.1250A	1400	1090	120	1350	1150	36	26	6	1251	1248	105	15	90	1
HSB.35.1250	HSW.35.1250	HSN.35.1250	1400	1090	120	1350	1150	36	26	6	1251	1248	105	15	90	-0.35
HSB.35.1435	HSW.35.1435	HSN.35.1435	1595	1278	120	1535	1335	36	26	6	1436	1433	105	15	90	1.15
HSB.35.1435	HSW.35.1435A	HSN.35.1435A	1595	1278	120	1535	1335	36	26	6	1436	1433	105	15	90	1
HSB.35.1540	HSW.35.1450A	HSN.35.1540A	1720	1360	140	1660	1420	42	26	6	1541	1538	122	18	110	1.15
HSB.35.1540	HSW.35.1540	HSN.35.1540	1720	1360	140	1660	1420	42	26	6	1541	1538	122	18	110	1.4
HSB.35.1700	HSW.35.1700	HSN.35.1700	1875	1525	140	1815	1585	42	29	6	1701	1698	122	18	110	1.15
HSB.35.1700	HSW.35.1700A	HSN.35.1700A	1875	1525	140	1815	1585	42	29	6	1701	1698	122	18	110	1.15
HSB.40.1880	HSW.40.1880	HSN.40.1880	2100	1665	160	2030	1740	48	32	6	1881	1878	140	20	115	1.4
HSB.40.1880	HSW.40.1880A	HSN.40.1880A	2100	1665	160	2030	1740	48	32	6	1881	1878	140	20	115	1.15
HSB.40.2115	HSW.40.2115	HSN.40.2115	2325	1900	160	2245	1980	48	32	6	2116	2113	140	20	115	1.4
HSB.40.2115	HSW.40.2115A	HSN.40.2115A	2325	1900	160	2245	1980	48	32	6	2116	2113	140	20	115	1.15
HSB.40.2370	HSW.40.2370	HSN.40.2370	2600	2146	180	2520	2220	48	32	6	2371	2368	158	22	130	1.4
HSB.40.2370	HSW.40.2370A	HSN.40.2370A	2600	2146	180	2520	2220	48	32	6	2371	2368	158	22	130	1.15
HSB.40.2600	HSW.40.2600	HSN.40.2600	2835	2365	180	2750	2450	54	36	6	2601	2598	158	22	130	1.4
HSB.40.2600	HSW.40.2600A	HSN.40.2600A	2835	2365	180	2750	2450	54	36	6	2601	2598	158	22	130	1.15
HSB.50.2820	HSW.50.2820	HSN.50.2820	3085	2555	200	3000	2640	54	36	6	2822	2818	178	22	150	1.4
HSB.50.2820	HSW.50.2820A	HSN.50.2820A	3085	2555	200	3000	2640	54	36	6	2822	2818	178	22	150	1.15
HSB.50.3120	HSW.50.3120	HSN.50.3120	3400	2840	200	3310	2930	54	36	6	3122	3118	178	22	150	1.4
HSB.50.3120	HSW.50.3120A	HSN.50.3120A	3400	2840	200	3310	2930	54	36	6	3122	3118	178	22	150	1.4
HSB.50.3580	HSW.50.3580	HSN.50.3580	3920	3240	240	3820	3340	60	40	6	3582	3578	218	22	190	1.4
HSB.50.3580	HSW.50.3580A	HSN.50.3580A	3920	3240	240	3820	3340	60	40	6	3582	3578	218	22	190	1.4
HSB.50.4030	HSW.50.4030	HSN.50.4030	4370	3690	240	4270	3790	66	40	6	4032	4028	218	22	190	1.4
HSB.50.4030	HSW.50.4030A	HSN.50.4030A	4370	3690	240	4270	3790	66	40	6	4032	4028	218	22	190	1.4
HSB.50.4540	HSW.50.4540	HSN.50.4540	4860	4210	240	4760	4310	72	40	6	4542	4538	218	22	190	1.4
HSB.50.4540	HSW.50.4540A	HSN.50.4540A	4860	4210	240	4760	4310	72	40	6	4542	4538	218	22	190	1.4
