XRBC Cross Roller Bearing

Product Description
XRBC type, this model is the basic type of cross roller bearings. The outer ring is divided into two pieces, the inner ring as a whole structure, it is most suitable for the requirements of the inner ring rotation accuracy of the occasion. XRBC type built on the basis of XRB steel retainer, suitable for working temperature is slightly higher and the required speed of the occasion, generally open structure.

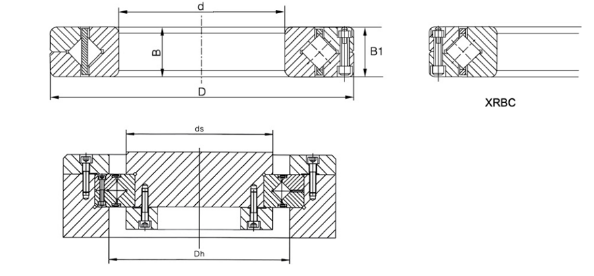

XRBC Cross Roller Bearing

Type Dimension(mm) Rated Load Weight Releated type
ID OD B Radial(KN)(KN)
d D B C Co Kg IKO
XRBC 3010 30 55 10 7.35 8.36 0.12 CRBC3010
XRBC 4010 40 65 10 8.33 10.6 0.16 CRBC4010
XRBC 5013 50 80 13 16.7 20.9 0.27 CRBC5013
XRBC 6013  60 90 13 18 24.3 0.3 CRBC6013
XRBC 7013 70 100 13 19.4 27.7 0.35 CRBC7013
XRBC 8016 80 120 16 30.1 42.1 0.7 CRBC8016
XRBC 9016 90 130 16 31.4 45.3 0.75 CRBC9016
XRBC 10020 100 150 20 33.1 50.9 1.45 CRBC10020
XRBC 11020 110 160 20 34 54 1.56 CRBC11020
XRBC 12025 120 180 25 66.9 100 2.62 CRBC12025
XRBC 13025 130 190 25 69.5 107 2.82 CRBC13025
XRBC 14025 140 200 25 74.8 121 2.96 CRBC14025
XRBC 15025 150 210 25 76.8 128 3.16 CRBC15025
XRBC 15030 230 30 100 156 5.3 CRBC15030
XRBC 20025 200 260 25 84.2 157 4 CRBC20025
XRBC 20030 280 30 114 200 6.7 CRBC20030
XRBC 20035 295 35 151 252 9.6 CRBC20035
XRBC 25025 250 310 25 69.3 150 5 CRBC25025
XRBC 25030 330 30 126 244 8.1 CRBC25030
XRBC 25040 355 40 195 348 14.8 CRBC25040
XRBC 30025 300 360 25 76.3 178 5.9 CRBC30025
XRBC 30035 395 35 183 367 13.4 CRBC30035
XRBC 30040 405 40 212 409 17.2 CRBC30040
XRBC 40035 400 480 35 156 370 14.5 CRBC40035
XRBC 40040 510 40 241 531 23.5 CRBC40040
XRBC 40070 580 70 470 811 72.4 CRBC40070
XRBC 50040 500 600 40 239 607 26 CRBC50040
XRBC 50050 625 50 267 653 41.7 CRBC50050
XRBC 50070 680 70 653 1330 86.1 CRBC50070
XRBC 60040 600 700 40 264 721 29 CRBC60040
XRBC 60070 780 70 700 1540 102 CRBC60070
XRBC 600120 870 120 1490 2800 274 CRBC600120
XRBC 70045 700 815 45 281 836 46 CRBC70045
XRBC 70070 880 70 766 1810 115 CRBC70070
XRBC 700150 1020 150 1980 3820 478 CRBC700150
XRBC 80070 800 950 70 468 1330 105 CRBC80070
XRBC 800100 1030 100 1140 2640 247 CRBC800100
