Double-row Ball Water Pump Bearings - Angular Contact

Product Description

MBY Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.MBY Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

MBY Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing - WB1630
Double-row ball water pump bearing - WB1940
Double-row ball water pump bearing - WB1938
Double-row ball water pump bearing - WB1226
Double-row ball water pump bearing - WB1224
Double-row ball water pump bearings
Single-row ball and single roller water pump bearings

Note：Swipe left or right to view the complete table!

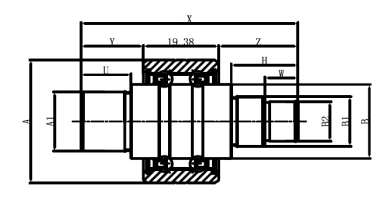

Bearing No.		Dimensions/mm
MBY		A	B	A1	B1	B2	X	Y	Z	H	U	W
DWAB2540077	2L9P5203U	40	25.349	16.002	12.042	0	77.495	16.51	41.605	34.366	13.995	0
WAB2540069	2L9P5203P	40	25.349	18.961	15.918	11	69.012	18.009	31.623	24.359	15.494	10.49
WAB2540073	2L9P5203R	40	25.349	18.961	15.918	13	73	16.002	37.617	32.36	13.487	15.011
