KBSB - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.

Note：Swipe left or right to view the complete table!

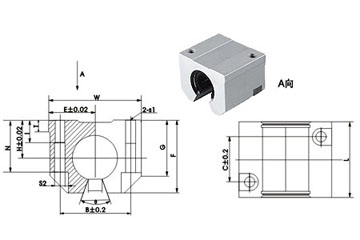

Bearing Code	Shaft Diameter	Main Dimensions							Mounting Dimension						Weight
									B	C	K	S1	S2	l
		h	E	W	L	F	G	T
KBSB12	12	18	21.5	43	32	35	31	6	32	23	5.5	M5	4.3	32	0.095
KBSB16	16	22	26.5	53	36	42	37	7	40	26	6.5	M6	5.3	36	0.161
KBSB20	20	25	30	60	45	50	44	7.5	45	32	7.5	M8	6.6	45	0.262
KBSB25	25	30	39	78	58	60	52.5	8.5	60	40	9	M10	8.4	58	0.487
KBSB30	30	35	43.5	87	68	70	62	9.5	68	45	9.5	M10	8.4	68	0.726
KBSB40	40	45	54	108	80	90	80	11	86	58	12	M12	10.5	80	1.276
