LME…LUU Linear Motion Bearings

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

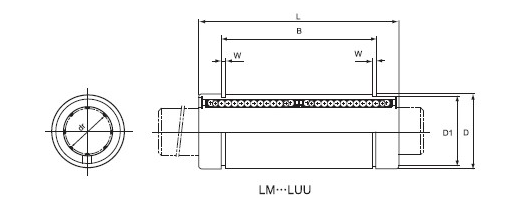

MBY Model No.	Number	Mass	Inscribed Circle Diameter		Out Diameter		Length		B		W	D1	Eccentricity	Radial	Basic load
	of Ball	g											(max)	Clearance	rating
	Rows		dr	Tolerance	D	Tolerance	L	Tolerance	-	Tolerance			μm	Tolerance	C (N)	Co (N)
LME 12LUU	4	80	12	+0.009/-0.001	22	0/-0.011	57	0/-0.3	45.8	0/-0.3	1.3	21	15	15	657	1200
LME 16LUU	5	145	16	+0.011/-0.001	26	0/-0.011	70	0/-0.3	49.8	0/-0.3	1.3	24.9	15	15	1230	2350
LME 20LUU	5	180	20	+0.011/-0.001	32	0/-0.013	80	0/-0.3	61	0/-0.3	1.6	30.5	17	20	1400	2750
LME 25LUU	6	440	25	+0.013/-0.002	40	0/-0.013	112	0/-0.4	82	0/-0.4	1.85	38	17	20	1560	3140
LME 30LUU	6	580	30	+0.013/-0.002	47	0/-0.013	123	0/-0.4	104.2	0/-0.4	1.85	44.5	17	20	2490	5490
LME 40LUU	6	1170	40	+0.016/-0.004	62	0/-0.015	154	0/-0.4	121.2	0/-0.4	2.15	59	20	25	3430	8040
LME 50LUU	6	3100	50	+0.016/-0.004	75	0/-0.015	192	0/-0.4	155.2	0/-0.4	2.65	72	20	25	6080	15900
LME 60LUU	6	3500	60	+0.016./-0.004	90	0/-0.020	211	0/-0.4	170	0/-0.4	3.15	86.5	25	25	7650	20000
LME 8LUU	4	31	8	+0.009/-0.001	16	0/-0.009	45	0/-0.3	33	0/-0.3	1.1	15.2	15	15	431	784
