PA - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

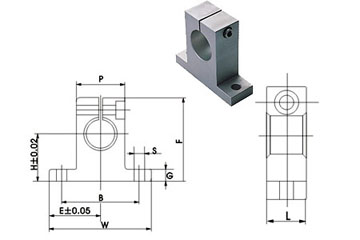

MBY Bearing Code	Shaft Diameter	Main Dimensions/mm									Weight(kg)
		h	E	W	L	F	G	P	B	S
PA12	12	20	21	42	12	35	5.5	20	32	4.3	0.021
PA16	16	25	25	50	16	42	6.5	26	40	4.3	0.04
PA20	20	30	30	60	20	50	8	32	45	4.3	0.075
PA25	25	35	37	74	25	58	9	38	60	5.3	0.13
PA30	30	40	42	84	28	68	10	45	68	6.4	0.195
