Drawn Cup Roller Clutches Clutch And Bearing Assemblies

Product Description

MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.

Note：Swipe left or right to view the complete table!

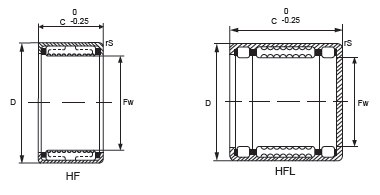

Shaft Diameter	Bearing Designation		Boundary Dimensions			Edgo	Mass Approx	Driving Moment	Limiting Speed
	Current	Original Code	Fw	D	C				Grease	Oil
mm			mm				g		rpm
4	HF0409	HF-0406	4	8	6	0.3	1	0.34	34000	14000
6	HF0612	HF-0612	6	10	12	0.3	3	1.76	23000	13000
8	HF0812	0	8	12	12	0.3	3.5	3.15	17000	11000
10	HF1012	0	10	14	12	0.3	4	5.3	14000	11000
12	HF1216	HF1216	12	18	16	0.3	10.5	12.2	10000	7000
14	HF1416	0	14	20	16	0.3	13	17.3	9500	8000
16	HF1616	0	16	22	16	0.3	14	20.5	8500	7500
18	HF1816	0	18	24	16	0	15.5	24.1	7500	7500
20	HF2016	0	20	26	16	0	17	28.5	7000	6500
25	HF2520	0	25	32	20	0	30.9	66	5500	5500
30	HF3020	0	30	37	20	0	36	90	4500	4500
35	HF3520	0	35	42	20	0	40	121	3900	3900
35	HF3530	0	35	42	30	0	58	121	3900	3900
8	HFL0822	0	8	12	22	0.3	6.3	3.15	17000	12000
12	HFL1226	0	12	18	26	0.3	18	12.2	10000	7000
14	HFL1426	0	14	20	26	0.3	20.3	17.3	9500	8000
16	HFL1624	0	16	22	24	0.3	19	20.5	8500	7500
16	HFL1624.5	0	16	22	24.5	0.3	20	20.5	8500	7500
16	HFL1626	0	16	22	26	0.3	22	20.5	8500	7500
18	HFL1826	0	18	24	26	0	24.4	24.1	7500	7500
20	HFL2016	0	20	26	26	0	27	28.5	7000	6500
25	HFL2530	0	25	32	30	0	44	66	5500	5500
30	HFL3030	0	30	37	30	0	51	90	4500	4500
