Model: | Single Row Ball and Roller Water Pump Bearings - WR Series |
---|---|
Brand: | MBY |
Quantity: | |

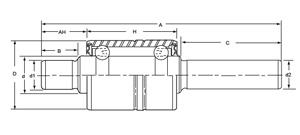

Bearing Designation | Boundary Dimensions (mm) | ||||||||
WD | D | H | A | AH | d | d1 | d2 | B | C |
WR1230104 | 58 | 62.5 | 152 | | 25 | | 17 | | 62 |
WR1630079 | 30 | 28 | 79 | 14 | 16 | | 12 | | 34.5 |
WR1630083 | 30 | 28 | 82.7 | 17.7 | 16 | | 12 | | 34.5 |
WR1630084 | 30 | 30 | 84 | | 15.918 | | 12 | | 36.6 |
WR1630085 | 30 | 30 | 85 | 17 | 15.918 | | 12.038 | | 36 |
WR1630085-1 | 30 | 30 | 85 | 17 | 15.918 | | 12 | | 12.038 |
WR1630087C | 30 | 38.8 | 86.5 | 13.5 | 15.918 | | 12 | | 32.7 |
WR1630087C-2 | 30 | 38.8 | 86.5 | 13.5 | 15.918 | | 12 | | 32.7 |
WR1630091 | 30 | 38.89 | 91 | | 15.918 | | 12 | | 36 |
WR1630091-2 | 30 | 38.89 | 90.5 | 14.81 | 15.918 | | 12 | | 34.5 |
WR1630092 | 30 | 38.89 | 92 | | 16 | | 12 | | |
WR1630093 | 30 | 38.9 | 93 | | 15.918 | | 12 | | 33 |
WR1630093-1 | 30 | 38.9 | 93.6 | | 15.918 | | 12 | | 38 |
WR1630095 | 30 | 33.38 | 95 | | 15.918 | | 12 | | 37 |
WR1630095-1 | 30 | 30 | 95.5 | 16.5 | 15.918 | | 12 | | 46.5 |
WR1630096 | 30 | 38.9 | 95.5 | | 15.918 | | | | |
WR1630096-2 | 30 | 38.9 | 95.8 | | 15.918 | | 12 | | 38.5 |
WR1630096-3 | 30 | 38.9 | 96.52 | | 15.918 | | | | |
WR1630096 | 30 | 38.9 | 98 | 17 | 15.918 | | | | |
WR1630100 | 30 | 46 | 100 | 17 | 16 | | 12 | | 34 |
WR1630101 | 30 | 38.9 | 101 | | 15.918 | | | | |
WR1630102-2 | 30 | 38.9 | 102.2 | | 15.918 | | 12 | | 37.5 |
WR1630102-3 | 30 | 38.89 | 101.5 | | 15.918 | | 12.038 | | 41.65 |
WR1630102C | 30 | 38.9 | 101.5 | | 15.918 | | | | |
WR1630104 | 30 | 38.89 | 104.5 | 17.5 | 15.918 | 12 | 12 | 16 | 45.5 |
WR1630105-1 | 30 | 39 | 104.2 | 16.9 | 15.918 | | | | 46.5 |
WR1630105C | 30 | 38.8 | 104.5 | 16.5 | 15.918 | | 12 | | 48.2 |
WR1630106 | 30 | 38.9 | 106.2 | | 15.918 | | 12 | | 41.4 |
WR1630106-1 | 30 | 38.9 | 105.7 | 17.5 | 15.918 | 12 | 12 | 16 | 46.7 |
WR1630106-2 | 30 | 38.89 | 106 | 30 | 15.918 | | 12 | | |
WR1630106-3 | 30 | 38.9 | 106.3 | | 15.918 | | 12 | | 39.9 |
WR1630106C | 30 | 38.89 | 105.65 | 16.25 | 15.918 | 12 | 12 | 14.5 | 48.15 |
WR1630107 | 30 | 38.89 | 107 | 21.5 | 15.918 | | 12 | | 43 |
WR1630110 | 30 | 38.9 | 109.5 | | 15.918 | 12.038 | 12.038 | 14 | 51.5 |
WR1630110-1 | 30 | 38.89 | 110 | | 15.918 | | | | |
WR1630115-1 | 30 | 38.9 | 115.4 | | 15.918 | | 12 | | 46.1 |
WR1630117 | 30 | 38.89 | 116.6 | | 15.918 | | | | |
WR1630124 | 30 | 38.9 | 124 | 35 | 15.918 | 12 | 12 | 33 | 48 |
WR1630133 | 30 | 38.89 | 103.12 | | 15.918 | | | | |
WR1630133 | 30 | 38.9 | 132.7 | | 15.918 | | | | |
WR1630134-1 | 30 | 38.89 | 103.12 | 27.94 | 15.918 | | | | |
WR1630136 | 30 | 38.9 | 135.8 | | 15.918 | | 12 | | 61.9 |
WR1630139 | 30 | 38.89 | 139 | 23.11 | 15.918 | | | | |
WR1630148 | 30 | 38.89 | 148 | 28.48 | 15.918 | | | | |
WR1635096 | 35 | 38.9 | 96 | | 15.918 | 12.038 | 12.038 | 15 | 37 |
WR1635101 | 35 | 39 | 101 | 25 | 17.5 | 15.918 | 12 | 23.5 | 33.8 |
WR1635101-2 | 35 | 39 | 100.5 | 24 | 15.918 | | 12 | | 36 |
WR1635101A-1 | 35 | 39 | 101 | | 15.918 | | 12 | | 34.8 |
WR1635103 | 35 | 39 | 103.2 | 26.5 | 18 | 15.918 | 12 | 24.5 | 35.7 |
WR1635106 | 35 | 39 | 106 | 42 | 17.5 | 15.918 | 12 | 28.5 | 34.8 |
WR1635112 | 35 | 39 | 112 | | 17.5 | 15.918 | 12 | 41.5 | 40.5 |
WR1635123 | 35 | 56 | 122.6 | | 18 | | 12 | | 35.2 |
WR1635124 | 35 | 39 | 124 | 30 | 17.5 | 15.918 | 12 | 39.5 | 28.5 |
WR1638099 | 38.1 | 41.275 | 99 | 19.5 | 19 | 15.918 | 12 | 17.5 | 36 |
WR1638101 | 38.1 | 37 | 101 | | 19 | 15.918 | 12 | 23.2 | 36.8 |
WR1638117 | 38.1 | 41.3 | 117.2 | | 19 | | 15.918 | | 47.4 |
WR1638117-1 | 38.1 | 54 | 117.2 | | 19 | | 15.918 | | 43 |
WR1638117-2 | 38.1 | 41.3 | 117.2 | | 19 | | 15.918 | | 48 |
WR1638120 | 38.1 | 54 | 120.7 | | 19 | | 15.918 | | 38.4 |
WR1638123 | 38.1 | 54 | 123 | | 19 | 15.918 | 15.918 | 13.5 | 35.5 |
WR1638125 | 38.1 | 54 | 125.3 | | 19 | | 15.918 | | 40 |
WR1638126 | 38.1 | 54 | 126 | | 19 | 15.918 | 15.918 | 14 | 39 |
WR1638126-1 | 38.1 | 54 | 126 | | 19 | 15.918 | 12 | 26.5 | 37 |
WR1638128 | 38.1 | 54 | 127.7 | | 19 | | 15.918 | | 40 |
WR1638129 | 38.1 | 54 | 128.6 | | 19 | | 15.918 | | 54.5 |
WR1638129-1 | 38.1 | 54 | 128.7 | | 19 | | 15.918 | | 41.7 |
WR1638129-3 | 38.1 | 54 | 129 | | 19 | | 15.918 | | 42.1 |
WR1638133 | 38.1 | 54 | 133 | | 19 | 15.918 | 15.918 | 12 | 45 |
WR1638134 | 38.1 | 54 | 134.2 | 22.4 | 19 | | 15.918 | | 49.7 |
WR1638134-1 | 38.1 | 54 | 134 | | 19 | | 15.918 | | 47.5 |
WR1638135 | 38.1 | 54 | 135 | | 19 | | 15.918 | | 41 |
WR1638135-1 | 38.1 | 54 | 135 | | 19 | | 15.918 | | 41.4 |
WR1638136-3 | 38.1 | 54 | 135 | | 19 | | 15.918 | | 56 |
WR1638136-4 | 38.1 | 54 | 136.5 | | 19 | | 15.918 | | 58.5 |
WR1638139 | 38.1 | 54 | 139.2 | | 19 | | 15.918 | | 46.5 |
WR1638145 | 38.1 | 54 | 144.5 | | 19 | | 15.918 | | 46 |
WR1638151 | 38.1 | 54 | 150.5 | | 19 | 15.918 | 15.918 | 14 | 49 |
WR1638154 | 38.1 | 54 | 154.4 | 21.5 | 19 | 15.918 | 15.918 | 9.5 | 57 |
WR1638155 | 38.1 | 54 | 155.1 | | 19 | | 15.918 | 9.5 | 59.7 |
WR1638157 | 38.1 | 54 | 156.5 | | 19 | 15.918 | 15.918 | | 53 |
WR1638158 | 38.1 | 54 | 158.1 | | 19 | 15.918 | 15.918 | 15 | 57 |
WR1638165 | 38.1 | 54 | 165.3 | | 19 | | 15.918 | 14.3 | 70.4 |
WR1638166 | 38.1 | 54 | 166.5 | 35 | 19 | | 15.918 | | 64 |
WR2040105 | 40 | 42 | 105 | | 20 | | 15.918 | | 40.5 |
WR2040112 | 40 | 44 | 111.5 | | 20 | | 15.918 | | 41 |
WR2040151 | 40 | 50 | 151 | | 20 | | 16 | | 44 |
WR2242111 | 42 | 46 | 110.8 | | 22 | | 12 | | 33.8 |
WR2242115 | 42 | 46 | 115.5 | | 20 | | 13 | | 38.5 |
WR2242136 | 42 | 56 | 138.5 | | 22 | | 15.918 | | 52.5 |
WR2247165 | 47 | 62.5 | 165 | | 22 | | 17 | | 55.5 |
WR2552133 | 52 | 52 | 133 | | 25 | | 15.92 | | 50 |
WR2552138 | 52 | 56 | 92 | | 25 | | 15.92 | | 50 |
WR2552138-4 | 52 | 56 | 138 | | 25 | | 15.92 | | 50 |
WR2552138C | 52 | 56 | 138 | | 25 | | 15.92 | | 50 |
WR2552140-1 | 52 | 52 | 140 | | 25 | | 15.92 | | 47 |
WR2552143 | 52 | 56 | 143 | | 25 | | 15.92 | | 50 |
WR2552145-1 | 52 | 52 | 145 | | 25 | | 15.92 | | 62 |
WR2552150 | 52 | 56 | 150 | | 25 | | 15.92 | | 57 |
WR2552153 | 52 | 56 | 153 | | 25 | | 15.92 | | 54.5 |
WR2552155 | 52 | 70 | 155 | | 25 | | 15.92 | | 50 |
WR2552162 | 52 | 56 | 162 | | 25 | | 15.92 | | 59 |
WR2552163 | 52 | 56 | 163 | | 25 | | 15.92 | | 50 |
WR2552163-1 | 52 | 56 | 163 | | 25 | | 15.92 | | 50 |
WR2552164 | 52 | 56 | 164 | | 25 | | 15.92 | | 64 |
WR2552165 | 52 | 56 | 165 | | 25 | | 15.92 | | 54.5 |
WR2552165 | 52 | 78 | 165.5 | | 25 | | 15.918 | | 50.5 |
WR2552208 | 55 | 56 | 208 | | 25 | M14 | 15.92 | 18 | 50 |
WR2555127A | 55 | 60 | 127 | | 25 | | 15.92 | | 40.9 |
WR2555145 | 58 | 60 | 145 | | 25 | 19 | 15.92 | 28.5 | 50 |
WR3258133 | 58 | 52 | 133 | | 25 | | 15.92 | | 51 |
WR3258140 | 58 | 52 | 140 | | 25 | | 15.92 | | 51 |
WR3258155 | 58 | 70 | 155 | | 25 | | 15.918 | | 51 |
