SME - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

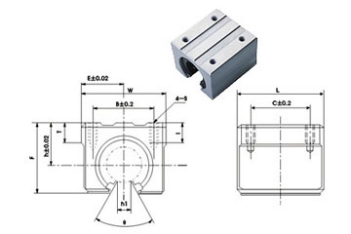

MBY Beraing Code	Shaft Diameter	Main Dimensions/mm								Mounting Dimension/mm				BASIC LOAD RATING		Weight(kg)
		h	E	W	L	F	T	h1	θ	B	C	S	l	c(kgf)	Co(kgf)
SME10	10	15	18	36	32	24	7	6	80	25	20	M5	10	38	56	0.065
SME12	12	17	20	40	39	27.6	8	8.5	80	28	26	M5	10	42	61	0.1
SME13	13	17	20	40	39	27.6	8	8.5	80	28	26	M5	10	52	80	0.1
SME16	16	20	22.5	45	45	33	9	10	80	32	30	M5	12	59	91	0.15
SME20	20	23	24	48	50	39	11	10	60	35	35	M6	12	88	140	0.2
SME25	25	27	30	60	65	47	14	11.5	50	40	40	M6	12	100	160	0.45
SME30	30	33	35	70	70	56	15	14	50	50	50	M8	18	160	280	0.63
SME35	35	37	40	80	80	63	18	16	50	55	55	M8	18	170	320	0.92
SME40	40	42	45	90	90	72	20	19	50	65	65	M10	20	220	410	1.33
SME50	50	53	60	120	110	92	25	23	50	94	80	M10	20	390	810	3
