Wheel Hub Ball Bearings - 2nd Generation

Product Description

MBY offers a vast range of bearings for the automotive industry including various types of tapered roller bearings, needle roller bearings, thrust bearings, ball bearings, angular contact bearings, spherical roller bearings, cylindrical roller bearings, thrust roller bearings etc.

Note：Swipe left or right to view the complete table!

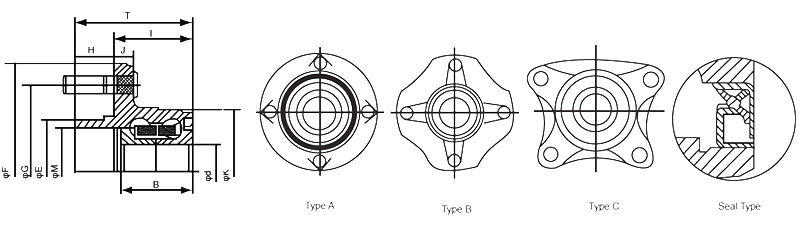

MBY Bearing No.	Dimensions(mm)						Outer Ring Flange
	d	F	B	T	E	M	G	K	H	I	J	Bolt size	Bolt Hole	Q'ty	Flange Shape
DACF25A01	25	133	43	73.4	60	54.25	108	71	19.4	54	12.25	M121.5	14.2	5	A
DACF25A02	25	133	43	73.4	60	54.3	100	71	19.4	54	11	M121.5	0	4	A
DACF27A01	27	148	55	73	66	52	114.3	64	15.5	57.5	9	0		4	A
DACF28A01	28	139	38	64.5	67	58	114.3	70	14	50.5	9	0		4	A
DACF28A02	28	140	48	70.5	67	59	114.3	63	14	50.5	9	M121.5		4	A
DACF28A03	28	140.8	50.5	71	56	47.8	100	66.6	18.9	52.1	4.5	M121.5		4	A
DACF28C01	28	0	42	0	0	61	97	66.2	0	51.8	7.5	0		4	C
DACF30A01	30	117	37	61.3	58	52	98	71.8	17	44.3	10	M121.5	0	4	A
DACF30A02	30	122	47	59.3	54	48	100	68	13.5	56	8	M121.5		4	A
DACF30A03	30	125	50	70.5	56	50	100	68.9	14	56.5	10	M121.5		4	A
DACF30A04	30	126	59	79	56	50.5	100	65.5	14.5	62.5	10	M121.5		5	A
DACF30A05	30	131	43	71.3	65	59	108	76	19	51	13.5	M121.5	0	4	A
DACF30A06	30	136	41	66	56	51	100	68.5	11.5	54.5	8	0		4	A
DACF30A07	30	136	40	66	56	51	100	68.5	11.5	54.5	8	M121.5		4	A
DACF30A08	30	140	50	70.5	67	59	114.3	68.9	14	56.5	9	M121.5		4	A
DACF30B01	30	152	41	67.5	64	58	114.3	67	11.5	55.5	9	M121.5		4	A
DACF30C01	30	0	42	0	0	63	99	68.2	0	51.8	7.5	0		4	C
DACF30C02	30	0	42	0	0	63	99	72	0	58.8	7.5	0		4	C
DACF30C03	30	0	42	0	0	63	99	73.6	0	51.8	7.5	0		4	C
DACF30C04	30	0	50	0	66	58.3	90	68	10	44	10	M121.5	0	4	B
DACF31A01	31	120	40	61	57	50.5	100	73.8	19	42	12	M121.5	0	4	C
DACF32A01	32	128	34	58.2	65	60	108	80	16	42.2	12.5	M121.5	0	4	A
DACF33A01	33	140	47	71.2	67	59	114.3	77	14	54.7	9	M121.5		5	A
DACF345A01	34.5	139	52	65.5	63.26	58	108	86	13.5	52	10	M121.5		5	A
DACF34A01	34	139	42	64.5	67	58	114.3	74	14	50.5	9	M121.5		4	A
DACF34A02	34	139.5	42	70	64	58	114.3	75	15	55	9	M121.5		4	A
DACF35A01	35	137	45	69.5	65	53.3	108	81	20.5	49	12	M121.5		5	A
DACF35A02	35	137	45	74	65	57	110	81	25	49	12	M121.5	0	5	A
DACF36A01	36	140	50	71	67	59	114.3	79	14	57	11	M121.5		5	A
DACF37A01	37	139	45	64	72.5	66	120	84	19	45	11	M121.5	0	5	A
DACF37A02	37	139	45	64	72.5	66	120	80	19	45	11	M121.5	0	5	A
DACF37A03	37	139	45	64	72.5	66	120	80	19	45	11	M121.5	0	5	A
DACF38A01	38	146.5	52	77	70	64	114.3	76.8	15	62	9	M121.5		5	A
DACF40C01	40	0	43	43	84	0	106	84	16.4	26.5	10	M121.5	0	4	C
DACF43C01	43	0	44	44	82.8	0	102	86	16.5	27.5	15	M121.5	0	4	C
