Model: KBB-AJ - Shaft Supporting Housing
Brand: MBY
Quantity:

KBB-AJ - Shaft Supporting Housing

Product Description
MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.

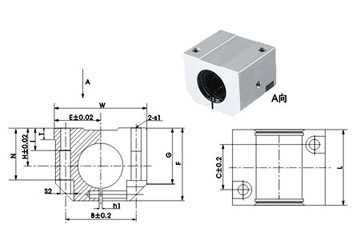

141

Note:Swipe left or right to view the complete table!
Bearing Code Shaft Diameter Main Dimensions/mm Mounting Dimension/mm Weight
H E W L F G T N h1 B C S1 S2 I K Kg)
KBB16AJ 16 22 26.5 53 43 42 32 7 30 1.5 40 26 M6 5.3 13 6.5 0.19
KBB20AJ 20 25 30 60 54 50 39 7.5 34 2 45 32 M8 6.6 18 7.5 0.31
KBB25AJ 25 30 39 78 67 60 48 8.5 40 2 60 40 M10 8.4 22 9 0.86
KBB30AJ 30 35 43.5 87 79 70 57 9.5 48 2 68 45 M10 8.4 22 9.5 0.91
