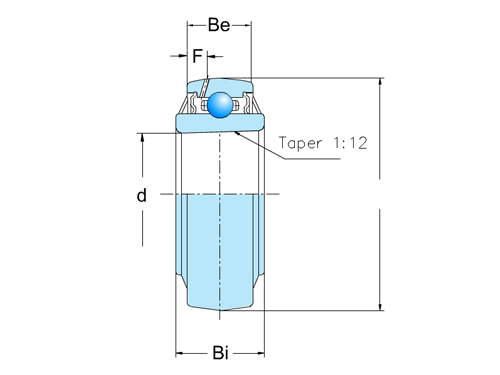

Bearing Number | Shaft Dia | Boundary dimensions(mm) | Basic load ratings(kN) | Mass(Kg) | ||||||
MBY | in. | mm | D | d | Bi | Be | F | C | Co | Kg |
UK205 | | 20 | 52 | 25 | 23 | 18 | 5.0 | 12000 | 7060 | 0.25 |
UK205-12 | 3/4 | - | 52 | 25 | 23 | 18 | 5.0 | 12000 | 7060 | 0.25 |
UK206 | - | 25 | 62 | 30 | 26 | 20 | 5.1 | 16400 | 10100 | 0.36 |
UK206-14 | 7/8 | - | 62 | 30 | 26 | 20 | 5.1 | 16400 | 10100 | 0.36 |
UK206-16 | 1 | - | 62 | 30 | 26 | 20 | 5.1 | 16400 | 10100 | 0.36 |
UK207 | - | 30 | 72 | 35 | 29 | 22 | 5.6 | 21600 | 13700 | 0.57 |
UK207-18 | 1-1/8 | - | 72 | 35 | 29 | 22 | 5.6 | 21600 | 13700 | 0.57 |
UK208 | - | 35 | 80 | 40 | 31 | 24 | 6.0 | 34800 | 16000 | 0.74 |
UK208-20 | 1-1/4 | - | 80 | 40 | 31 | 24 | 6.0 | 34800 | 16000 | 0.74 |
UK208-22 | 1-3/8 | - | 80 | 40 | 31 | 24 | 6.0 | 34800 | 16000 | 0.74 |
UK209 | - | 40 | 85 | 45 | 31 | 24 | 5.9 | 27300 | 17800 | 0.83 |
UK209-23 | 1-7/16 | - | 85 | 45 | 31 | 24 | 5.9 | 27300 | 17800 | 0.83 |
UK209-24 | 1-1/2 | - | 85 | 45 | 31 | 24 | 5.9 | 27300 | 17800 | 0.83 |
UK209-26 | 1-5/8 | - | 85 | 45 | 31 | 24 | 5.9 | 27300 | 17800 | 0.83 |
UK210 | - | 45 | 90 | 50 | 32 | 25 | 6.4 | 29300 | 19800 | 0.97 |
UK210-26 | 1-5/8 | - | 90 | 50 | 32 | 25 | 6.4 | 29300 | 19800 | 0.97 |
UK210-27 | 1-11/16 | - | 90 | 50 | 32 | 25 | 6.4 | 29300 | 19800 | 0.97 |
UK210-28 | 1-3/4 | - | 90 | 50 | 32 | 25 | 6.4 | 29300 | 19800 | 0.97 |
UK211 | - | 50 | 100 | 55 | 35 | 27 | 7.0 | 36200 | 25100 | 1.26 |
UK211-30 | 1-7/8 | - | 100 | 55 | 35 | 27 | 7.0 | 36200 | 25100 | 1.26 |
UK211-31 | 1-15/16 | - | 100 | 55 | 35 | 27 | 7.0 | 36200 | 25100 | 1.26 |
UK211-32 | 2 | - | 100 | 55 | 35 | 27 | 7.0 | 36200 | 25100 | 1.26 |
UK212 | - | 55 | 110 | 60 | 38 | 30 | 7.7 | 43800 | 30900 | 1.59 |
UK212-34 | 2-1/8 | - | 110 | 60 | 38 | 30 | 7.7 | 43800 | 30900 | 1.59 |
UK213 | - | 60 | 120 | 65 | 40 | 32 | 8.7 | 46300 | 34000 | 2.00 |
UK213-35 | 2-3/16 | - | 120 | 65 | 40 | 32 | 8.7 | 46300 | 34000 | 2.00 |
UK213-36 | 2-1/4 | - | 120 | 65 | 40 | 32 | 8.7 | 46300 | 34000 | 2.00 |
UK213-38 | 2-3/8 | - | 120 | 65 | 40 | 32 | 8.7 | 46300 | 34000 | 2.00 |
UK215 | - | 65 | 130 | 75 | 44 | 34 | 9.0 | 55000 | 41200 | 2.56 |
UK215-39 | 2-7/16 | - | 130 | 75 | 44 | 34 | 9.0 | 55000 | 41200 | 2.56 |
UK215-40 | 2-1/2 | - | 130 | 75 | 44 | 34 | 9.0 | 55000 | 41200 | 2.56 |
UK216 | - | 70 | 140 | 80 | 45 | 35 | 9.5 | 59300 | 44900 | 3.23 |
UK216-43 | 2-11/16 | - | 140 | 80 | 45 | 35 | 9.5 | 59300 | 44900 | 3.23 |
UK216-44 | 2-3/4 | - | 140 | 80 | 45 | 35 | 9.5 | 59300 | 44900 | 3.23 |
UK217 | - | 75 | 150 | 85 | 46 | 36 | 10.1 | 69300 | 53000 | 3.93 |
UK217-47 | 2-15/16 | - | 150 | 85 | 46 | 36 | 10.1 | 69300 | 53000 | 3.93 |
UK217-48 | 3 | - | 150 | 85 | 46 | 36 | 10.1 | 69300 | 53000 | 3.93 |
UK218 | - | 80 | 160 | 90 | 47 | 37 | 9.8 | 80000 | 60500 | 4.74 |
UK218-51 | 3-3/16 | - | 160 | 90 | 47 | 37 | 9.8 | 80000 | 60500 | 4.74 |
