Model: SMA-L - Shaft Supporting Housing
Brand: MBY
Quantity:

SMA-L - Shaft Supporting Housing

Product Description
MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.

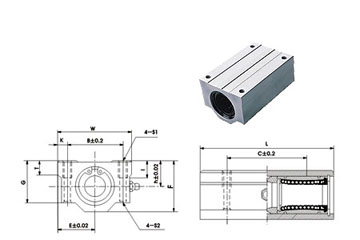

163

Note:Swipe left or right to view the complete table!
Bearing Code Shaft Diameter Main Dimensions Mounting Dimension Weight
h E W L F G T B C K S1 S2 l
SMA10L 10 13 20 40 68 26 21 8 28 46 6 M5 4.3 12 0.18
SMA12L 12 15 21 42 70 28 24 8 30.5 50 5.75 M5 4.3 12 0.2
SMA13L 13 15 22 44 75 30 24.5 8 33 50 5.5 M5 4.3 12 0.23
SMA16L 16 19 25 50 85 38.5 32.5 9 36 60 7 M5 4.3 12 0.39
SMA20L 20 21 27 54 96 41 35 11 40 70 7 M6 5.2 12 0.49
SMA25L 25 26 38 76 130 51.5 42 12 54 100 11 M8 7 18 1.165
SMA30L 30 30 39 78 140 59.5 49 15 58 110 10 M8 7 18 1.43
SMA35L 35 34 45 90 155 68 54 18 70 120 10 M8 7 18 2.13
SMA40L 40 40 51 102 175 78 62 20 80 140 11 M10 8.7 25 3.09
SMA50L 50 52 61 122 215 102 80 25 100 160 11 M10 8.7 25 6.53
SMA60L 60 58 66 132 240 114 94 30 108 180 12 M12 10.7 25 9.29
SMA8L 8 11 17 34 58 22 18 6 24 42 5 M4 3.4 8 0.1
