Single Direction Thrust Ball Bearings

Product Description

MBY thrust ball bearings are manufactured as single direction or double direction thrust ball bearings.
They are designed to accommodate axial loads only and must not be subjected to any radial load.
MBY thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately.
Shaft washers have a ground bore to enable an interference fit.
The bore of the housing washer is turned and always larger than the shaft washer bore.

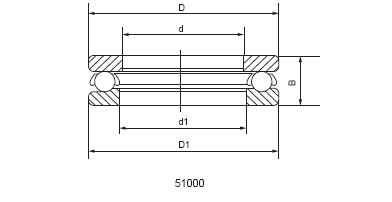

Single direction thrust ball bearing
MBY single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assembly.
As their name implies, single direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only.

Double direction thrust ball bearing
MBY double direction thrust ball bearings consist of one shaft washer, two housing washers and two ball and cage assemblies.
The housing washers and ball and cage assemblies of double direction bearings are identical to those used in single direction bearings.
Double direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in both directions



Note：Swipe left or right to view the complete table!

Bearing  Designations	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
				dynamic	static		Reference speed	Limiting speed
MBY	d	D	H	C	C0	Pu
	mm			kN		kN	r/min
51100	10	24	9	9.9	15.3	0.56	9500	13000
51101	12	26	9	10.4	16.6	0.62	9000	13000
51102	15	28	9	10.6	18.3	0.67	8500	12000
51103	17	30	9	11.4	21.2	0.78	8500	12000
51104	20	35	10	15.1	29	1	7500	10000
51105	25	42	11	18.2	39	1.4	6300	9000
51106	30	47	11	19	43	1.6	6000	8500
51107	35	52	12	19.9	51	1.8	5600	7500
51108	40	60	13	25.5	63	2.3	5000	7000
51109	45	65	14	26.5	69.5	2.5	4500	6300
51110	50	70	14	27	75	2.8	4300	6300
51111	55	78	16	30.2	81.5	3	3800	5300
51112	60	85	17	41.6	122	4.5	3600	5000
51113	65	90	18	37.7	108	4	3400	4800
51114	70	95	18	40.3	120	4.4	3400	4500
51115	75	100	19	44.2	134	4.9	3200	4300
51116	80	105	19	44.9	140	5.1	3000	4300
51117	85	110	19	44.9	146	5.4	3000	4300
51118	90	120	22	59.2	208	7.5	2600	3800
51120	100	135	25	80.6	265	9.1	2400	3200
51122	110	145	25	83.2	285	9.5	2200	3200
51124	120	155	25	85.2	305	9.6	2200	3000
51126	130	170	30	119	440	13.4	1900	2600
51128	140	180	31	111	440	12.9	1800	2600
51130 M	150	190	31	111	440	12.5	1700	2400
51132 M	160	200	31	112	465	12.9	1700	2400
51134 M	170	215	34	133	540	14.3	1600	2200
51136 M	180	225	34	135	570	15	1500	2200
51138 M	190	240	37	172	710	18	1400	2000
51140 M	200	250	37	168	710	17.6	1400	1900
51144 M	220	270	37	178	800	19	1300	1900
51148 M	240	300	45	234	1040	23.6	1100	1600
51152 M	260	320	45	238	1100	24	1100	1500
51156 M	280	350	53	319	1460	30.5	950	1300
51160 M	300	380	62	364	1760	35.5	850	1200
51164 M	320	400	63	371	1860	36.5	800	1100
51168 M	340	420	64	377	1960	37.5	800	1100
51172 F	360	440	65	390	2080	38	750	1100
51176 F	380	460	65	397	2200	40	750	1000
51180 F	400	480	65	403	2280	40.5	700	1000
51184 F	420	500	65	410	2400	41.5	700	1000
51188 F	440	540	80	527	3250	55	600	850
51192 F	460	560	80	527	3250	54	600	800
51196 F	480	580	80	540	3550	56	560	800
511/500 F	500	600	80	553	3600	57	560	800
511/530 F	530	640	85	650	4400	68	530	750
511/560 F	560	670	85	650	4650	68	500	700
511/600 F	600	710	85	663	4800	69.5	500	700
511/630 F	630	750	95	728	5400	76.5	450	630
511/670 M	670	800	105	852	6700	91.5	400	560
511/670 F	670	800	105	852	6700	91.5	400	560
511/710 F	710	850	112	936	7650	100	380	530
511/750 M	750	900	120	1010	8650	110	340	480
511/800 F	800	950	120	1010	9000	112	340	480
511/850 F	850	1000	120	1060	9500	116	320	450
511/900 F	900	1060	130	1140	10800	127	300	430
511/950 F	950	1120	135	1330	12000	137	280	400
511/1000 F	1000	1180	140	1330	13200	150	260	380
511/1060 M	1060	1250	150	1430	15000	163	240	340
511/1120 F	1120	1320	160	1530	16300	173	220	320
511/1180 F	1180	1400	175	1780	20000	204	200	280
511/1400 F	1400	1630	180	1900	23600	224	180	260
51200	10	26	11	12.7	18.6	0.69	8000	11000
51201	12	28	11	13.3	20.8	0.76	8000	11000
51202	15	32	12	15.9	25	0.91	7000	10000
51203	17	35	12	16.3	27	1	6700	9500
51204	20	40	14	21.2	37.5	1.4	6000	8000
51205	25	47	15	26.5	50	1.8	5300	7500
51206	30	52	16	25.1	51	1.8	4800	6700
51207	35	62	18	35.1	73.5	2.7	4000	5600
51208	40	68	19	44.2	96.5	3.6	3800	5300
51209	45	73	20	39	86.5	3.2	3600	5000
51210	50	78	22	49.4	116	4.3	3400	4500
51211	55	90	25	58.5	134	4.9	2800	4000
51212	60	95	26	59.2	140	5.1	2800	3800
51213	65	100	27	60.5	150	5.5	2600	3600
51214	70	105	27	62.4	160	5.8	2600	3600
51215	75	110	27	63.7	170	6.2	2400	3400
51216	80	115	28	76.1	208	7.6	2400	3400
51217	85	125	31	97.5	275	9.8	2200	3000
51218	90	135	35	112	290	10.4	2000	2800
51220	100	150	38	119	325	10.8	1800	2400
51222	110	160	38	125	365	11.6	1700	2400
51224	120	170	39	127	390	11.8	1600	2200
51226	130	190	45	186	585	17	1400	2000
51228	140	200	46	190	620	17.6	1400	1900
51230 M	150	215	50	238	800	22	1300	1800
51232 M	160	225	51	238	830	22.4	1200	1700
51234 M	170	240	55	270	930	24	1200	1700
51236 M	180	250	56	302	1120	28.5	1200	1600
51238 M	190	270	62	332	1270	31	1100	1600
51240 M	200	280	62	338	1320	31.5	1100	1500
51244 M	220	300	63	358	1460	33.5	950	1300
51248 M	240	340	78	449	1960	42.5	800	1100
51252 M	260	360	79	488	2240	46.5	750	1100
51256 M	280	380	80	488	2320	47.5	750	1000
51260 M	300	420	95	585	3000	57	630	850
51264 F	320	440	95	572	3000	56	600	800
51268 F	340	460	96	605	3200	58.5	530	750
51272 F	360	500	110	741	4150	73.5	500	700
51276 F	380	520	112	728	4150	72	500	700
51280 F	400	540	112	761	4500	76.5	500	700
51284 F	420	580	130	884	5500	90	430	600
51288 F	440	600	130	904	5700	93	430	600
51292 F	460	620	130	923	5850	95	430	600
51296 F	480	650	135	995	6550	102	400	560
512/500 F	500	670	135	1010	6800	104	380	530
