Model: Yoke Type Track Rollers - NKIA Series
Brand: MBY
Quantity:

Yoke Type Track Rollers - NKIA Series

Product Description
MBY track roller bearings include mast rollers and chain pulleys, and york type track rollers. They are essentially cylindrical roller or needle roller bearings which have a thick-walled outer race.The pulleys are available with a flat runner surface or a crowned one, which can be designed according to customer’s application. They can roll directly on the tray under heavy load and shock load. They are greased for life. Under normal operating conditions, they are maintenance-free, while they should be re-lubricated under severe working condition to prolong the working lifespan.Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and are suitable for cam drives, slideways, conveying equipment etc. The bearings are available with or without an inner ring as well as in open and sealed versions.

MBY bearings for material handling system consist of roller bearings for forklift portal, chain guided roller bearings for forklift and standard combined bearings.With thick outer race,these bearings could afford heavy contact load.the contact working area of forklift portal bearings and standard combined bearings has been optimized to ensure a more reasonable load distribution when there is contact stress.MBY bearing group could also manufacture the special or non-standard bearings and customizing bearings according to the customers' demands.

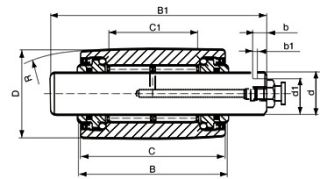

131

Note:Swipe left or right to view the complete table!
Bearing Code d D C B B1 C1 b b1 d1 R C Co Cw Cow Reference index
mm mm mm mm mm mm mm mm mm mm KN KN KN KN Italy
NKIA12X25.5X61.5-2RS 12 25.5 30 32 61.5 25 4.5 2 9 140 9 15 8 13 MRSC.0012
NKIA14X27X75-2RS 14 27 41 43 75 25 5 2.5 11 140 13.5 20 11.5 17 MRSC.0014
NKIA15X31X77-2RS 15 31 44 46 77 38 6 2.5 12 145 18 23 16 21 MRSC.0015
NKIA15X31X82-2RS 15 31 46 48 82 38 6 2.5 12 145 18 23 16 21 MRSC.0016
NKIA18X33X90-2RS 15 33 57 58 90 39 5 2.5 15 145 20 37 17 30 MRSC.0017
NKIA18X36X95-2RS 18 36 62 64 95 34 6 2.5 15 145 25 46 22 44 MRSC.0018
NKIA20X40X110-2RS 20 41 68 70 110 42 7 2.5 17 145 40 68 35 62 MRSC.0020
NKIA20X41X81-2RS 20 41 48 50 81 40 6 2.5 17 50 34 52 30 46 MRSC.0019
NKIA25X48X133-2RS 25 48 83 85 133 59 7 2.5 22 180 66 112 52 90 MRSC.0024
NKIA25X48X95-2RS 20 48 58 60 95 48 6 2.5 22 145 40 75 35 64 MRSC.0023
NKIA25X52X110-2RS 28 52 69 72 110 55 7 3 25 180 45 110 39 100 MRSC.0026
NKIA25X52X138-2RS 25 52 78 80 138 60 7 3 22 180 79 124 56 102 MRSC.0025
NKIA30X56X133-2RS 30 56 83 85 133 59 7 3 27 180 67 132 53 102 MRSC.0028
NKIA30X60X99.5-2RS 30 60 57 58.5 99.5 46 10 5 27 180 62 109 47 99 MRSC.0029
NKIA32X63X133-2RS 32 63 83 85 133 51 7 3 27 180 75 118 63 105 MRSC.0030
NKIA32X66X178-2RS 32 66 103 105 178 93 7 3 29 180 104 130 74 108 MRSC.0032
NKIA50X83X190-2RS 50 83 128 130 190 94 9 4 45.5 180 120 300 88 88 MRSC.0050
