Roller and ball bearings are among the most frequently employed bearing types used for industrial applications.
Though both types serve the same function - to reduce friction between moving parts - there are significant variations that make one better suited than the other in certain circumstances.
We'll guide you through the differences between roller and ball bearings and help enable you to select the ideal bearing type for your application, guaranteeing optimal performance and longevity.
Roller and ball bearings are two of the most frequently encountered bearing types used across various machineries such as cars, airplanes, and industrial equipment.
Though both types of bearings serve the same function of reducing friction between moving parts, there are distinct distinctions between them.
The rolling element is a cylinder or cone
Higher load capacity
Carry both radial and axial loads
Roller bearings have a higher contact surface area than ball bearings because the rolling element might be a cylindrical, tapered, or spherical cylinder or cone.
The size and shape of the rolling element can significantly affect the load capacity and overall rigidity of the bearing.
Roller bearings can handle radial and axial loads better than ball bearings.
Therefore, when you need to support heavy loads or combine both radial and axial loads, roller bearings are the preferred choice due to higher load-bearing capacity.
Small metal ball that rolls between two races
Carry radial loads
Smaller load capacity
Higher rotational speed

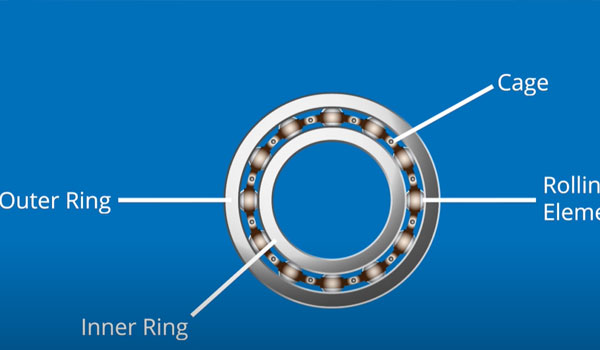

In a ball bearing, the rolling element is a small metal ball that rolls between two bearing races.
Ball bearings are a great choice for applications that require higher rotational speeds and lighter loads.
While ball bearings are limited to carrying only radial loads.
The secret to choosing the appropriate type of bearing for your application is understanding the various loads and operating circumstances.
When deciding between these two types of bearings, various factors must be considered.
One of the key advantages of roller bearings over ball bearings is their ability to handle shock and impact loading better.
With their larger contact surface, roller bearings are generally more resilient to these types of loads than ball bearings, which have smaller contact areas.
Roller bearings are typically more expensive than ball bearings and may not be necessary for applications that do not involve significant shock or impact loading.
Application of speed and load are also essential.
Ball bearings are generally better suited for applications involving higher speeds and lighter loads.
They have less friction, allowing them to rotate at higher speeds.
Roller bearings are ideal for handling radial loads, such as those encountered in gearboxes, as well as axial loads.
Axial loads are forces that act in the direction of the bearing's axis of rotation.
The thrust bearing is a specific form of roller bearing created to support axial loads.
Ball bearings are best suited for handling radial loads and are typically not recommended for handling significant axial loads.
While roller bearings are generally preferred for their higher load-bearing capacity and better ability to handle shock loading, ball bearings may be more suitable for applications that require higher speeds, lighter loads, and less sensitivity to operating conditions.
Roller bearings transfer loads across a larger surface area than ball bearings using cylindrical rollers.
Let's examine the benefits and drawbacks of conveyor roller bearings.
Handles heavier loads: Roller bearings have a fixed axis and are better suited for applications that require heavier loads and higher shock resistance.
Higher shock resistance: Withstand greater shocks and impacts without suffering damage, making them ideal for heavy-duty industrial applications.
Preferred for industrial use: This is because the cylindrical rollers can distribute the load more evenly than the point contact of a ball bearing.
Durability and longevity: Ability to take on larger capacities and have a longer life span.
However, roller bearings also have some disadvantages:
Limited movement: Roller bearings are limited to rotational or linear movements along their fixed axis.
Fixed axis: Limited axial movement.
Less adaptable: This makes them less adaptable to certain applications and may require additional design considerations.
Susceptible to angular misalignment: The fixed axis of roller bearings restricts their ability to adjust to slight changes in angle, which can result in premature wear and failure.
Roller bearings work good in a variety of commercial uses. It's crucial to evaluate the special requirements of each application before selecting a choice.
Conveyor ball bearings are popular in various industries due to their many benefits.
These bearings are made up of a series of spherical balls that rotate within a raceway, which allows them to handle different load cases and provide low-friction operation.
Conveyor ball bearings have a number of advantages and disadvantages:
Versatility: They function effectively in a wide range of applications, from high-speed machinery to low-speed conveyors. Their modest size and simple design make them ideal for circumstances where space is premium.
Load Cases: Conveyor ball bearings are capable of handling both radial and axial loads, which means they can handle both vertical and horizontal forces. This makes them ideal for conveyors that transport heavy loads in different directions.
Low Friction: The rolling motion of the balls within the raceway creates very little friction, translating to a smooth and highly efficient operation. It lengthens the conveyor system's life span.
Heavy Loads: Compared to roller bearings, ball bearings have smaller contact points, which makes them less suited for applications that require heavy load capacity. Heavy loads might prematurely wear bearings.
Precision: In applications requiring high precision or tight tolerances, such as in manufacturing precision machinery or medical equipment, ball bearings may not be the best choice.
Wear and Tear: With heavy loads or prolonged use, conveyor ball bearings may wear down more quickly than other types of bearings. This could decrease the conveyor system's effectiveness and necessitate more regular repair and replacement.
Conveyor ball bearings offer versatility, can handle different load cases, and provide low friction operation, making them an excellent choice for many applications.
However, they may not be the best option in situations that require heavy load capacity or high levels of precision and tight tolerances.
When it comes to choosing between roller bearings and ball bearings, it ultimately depends on the specific application and requirements.
Both types have their advantages and disadvantages, and it's important to consider factors such as load capacity, speed, and accuracy.
Understanding the differences and consulting specialists can help you choose the best option for your needs.
Remember, choosing the right bearing can make a significant difference in the performance and longevity of your machinery.
