Model: UCP213
Brand: MBY
Quantity:
Inquire Add to Basket

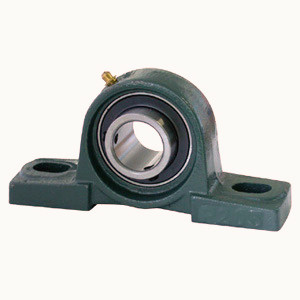

UCP213 Pillow Block Bearing

Product Description

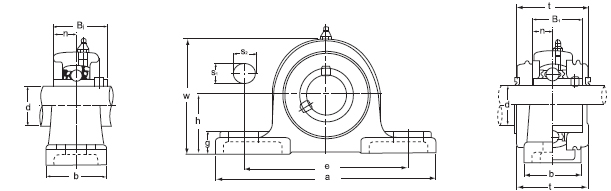

80

Unit No UCP213-40NAP213
d 2-1/2
mm 65
H 76.2
L 265
J 203
A (mm) 70
N 25
N1 29
H1 26
H0 149
S 25.4
S1 34.1
B 65.1
B1 85.7
Bolt Used M20
Bearing Code UC213-40NA213
Housing Code P213
Mass UCP 5.6
Mass NAP 6.3
