SQ22RS Spherical Plain Bearings

Product Description

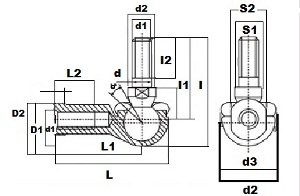

Belong	Spherical plain bearings
Boundary dimensions#d	22 mm
Boundary dimensions#d1	M22×1.5 mm
Boundary dimensions#d2 min	27 mm
Boundary dimensions#l max	95 mm
Boundary dimensions#l1 min	26 mm
Boundary dimensions#l2	28 mm
Boundary dimensions#L max	109 mm
Boundary dimensions#L1	84 mm
Boundary dimensions#L2 max	12 mm
Boundary dimensions#D1 max	30 mm
Boundary dimensions#D2 max	37 mm
Boundary dimensions#α°	16 mm
wt	0.713 kg
Bearing numbers	SQ22-RS
