POS8 Spherical Plain Bearings

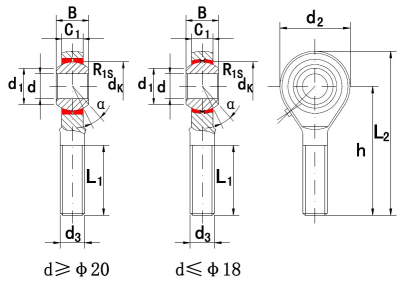

Bearing dimensions and specification in brand catalogue :

d - 8 mm

L2 - 53 mm

d1 - 10,4 mm

d2 - 22 mm

dk - 15,875 / mm

h - 42 mm

r1 min. - 0,2 mm

B - 12 mm

C1 - 9 mm

L1 - 25 mm

Thread (G) - M 8×1,25

Weight - 0,032 Kg

Basic dynamic load rating (C) - 7,01 kN

Basic static load rating (C0) - 8,64 kN
