POS30 Spherical Plain Bearings

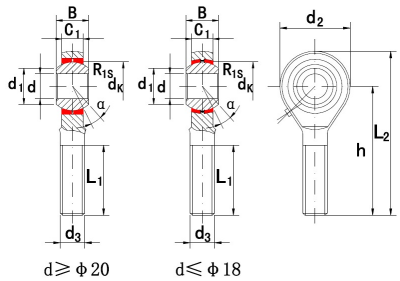

Bearing dimensions and specification in brand catalogue :

d - 30 mm

L2 - 145 mm

d1 - 34,8 mm

d2 - 70 mm

dk - 50,800 / mm

h - 110 mm

r1 min. - 0,6 mm

B - 37 mm

C1 - 25 mm

L1 - 66 mm

Thread (G) - M30×2

Weight - 1,07 Kg

Basic dynamic load rating (C) - 62,3 kN

Basic static load rating (C0) - 92,2 kN
