POS25 Spherical Plain Bearings

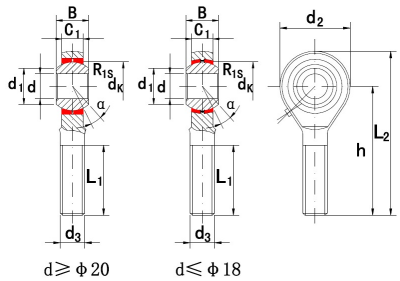

Bearing dimensions and specification in brand catalogue :

d - 25 mm

L2 - 124 mm

d1 - 29,6 mm

d2 - 60 mm

dk - 42,862 / mm

h - 94 mm

r1 min. - 0,6 mm

B - 31 mm

C1 - 22 mm

L1 - 57 mm

Thread (G) - M24×2

Weight - 0,65 Kg

Basic dynamic load rating (C) - 46,2 kN

Basic static load rating (C0) - 72,7 kN
