POS22 Spherical Plain Bearings

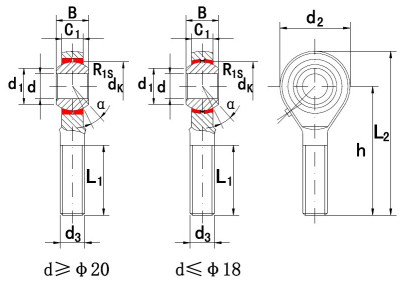

Bearing dimensions and specification in brand catalogue :

d - 22 mm

L2 - 109 mm

d1 - 25,8 mm

d2 - 50 mm

dk - 38,100 / mm

h - 84 mm

r1 min. - 0,2 mm

B - 28 mm

C1 - 20 mm

L1 - 51 mm

Thread (G) - M22×1,5

Weight - 0,435 Kg

Basic dynamic load rating (C) - 37,4 kN

Basic static load rating (C0) - 41,7 kN
