POS16 Spherical Plain Bearings

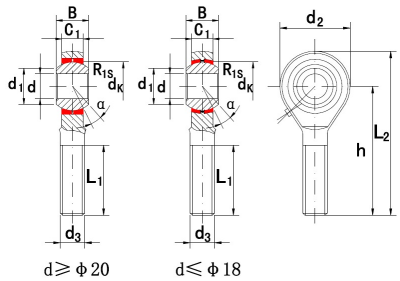

Bearing dimensions and specification in brand catalogue :

d - 16 mm

L2 - 85 mm

d1 - 19,4 mm

d2 - 38 mm

dk - 28,575 / mm

h - 66 mm

r1 min. - 0,2 mm

B - 21 mm

C1 - 15 mm

L1 - 40 mm

Thread (G) - M16×2

Weight - 0,185 Kg

Basic dynamic load rating (C) - 21 kN

Basic static load rating (C0) - 25,4 kN
