POS10 Spherical Plain Bearings

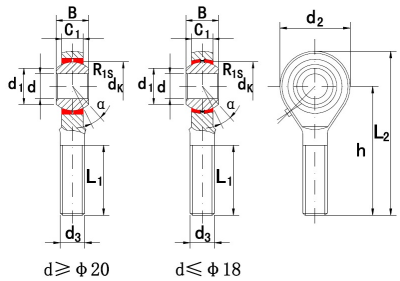

Bearing dimensions and specification in brand catalogue :

d - 10 mm

L2 - 61 mm

d1 - 12,9 mm

d2 - 26 mm

dk - 19,050 / mm

h - 48 mm

r1 min. - 0,2 mm

B - 14 mm

C1 - 10,5 mm

L1 - 29 mm

Thread (G) - M10×1,5

Weight - 0,054 Kg

Basic dynamic load rating (C) - 9,81 kN

Basic static load rating (C0) - 13,3 kN
