PHS30 Rod end Spherical Plain Bearings

Product Description

Type	Radial spherical plain bearings
items	PHS30
Belong	Plain Bearings

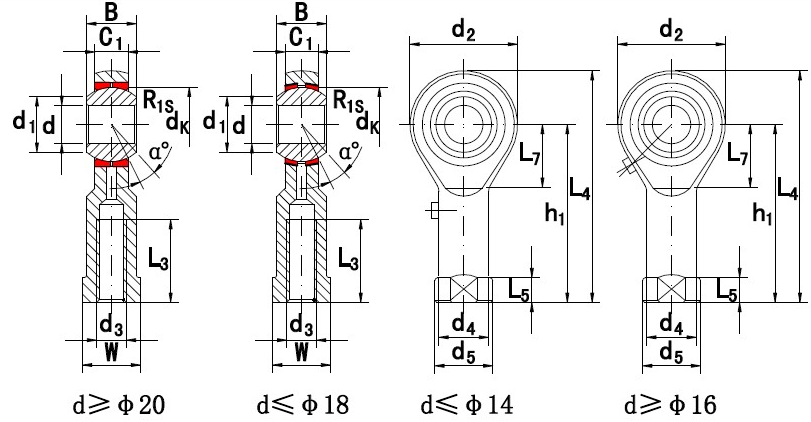

PHS 30 size:
d	30 mm
L4	145 mm
L5	15 mm
dL	50 mm
L3	56 mm
d1	34,8 mm
d2	70 mm
d3	40 mm
dk	50,800 / mm
h1	110 mm
r1 min.	0,6 mm
B	37 mm
C1	25 mm
W	41 mm
Thread (G)	M30×2
Weight	1,13 Kg
Basic dynamic load rating (C)	62,3 kN
Basic static load rating (C0)	92,2 kN
