PHS22 Rod end Spherical Plain Bearings

Product Description

Type	Radial spherical plain bearings
items	PHS22
Belong	Plain Bearings

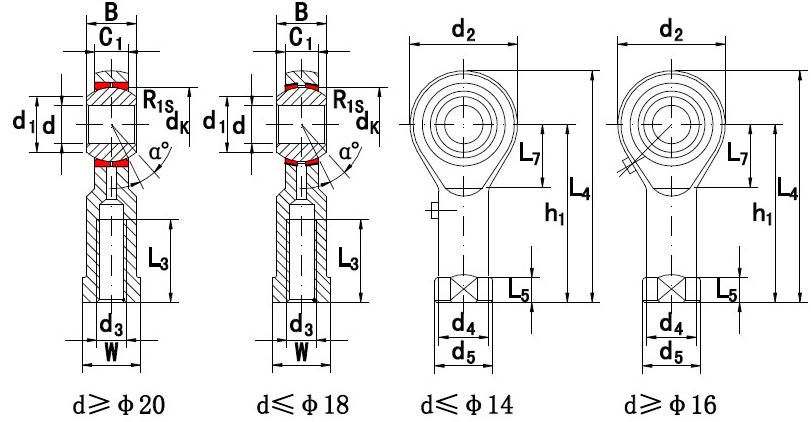

PHS 22 size:
d	22 mm
L4	109 mm
L5	12 mm
dL	37 mm
L3	43 mm
d1	25,8 mm
d2	50 mm
d3	30 mm
dk	38,100 / mm
h1	84 mm
r1 min.	0,2 mm
B	28 mm
C1	20 mm
W	32 mm
Thread (G)	M22×1,5
Weight	0,49 Kg
Basic dynamic load rating (C)	37,4 kN
Basic static load rating (C0)	41,7 kN
