PHS20 Rod end Spherical Plain Bearings

Product Description

Type	Radial spherical plain bearings
items	PHS20
Belong	Plain Bearings

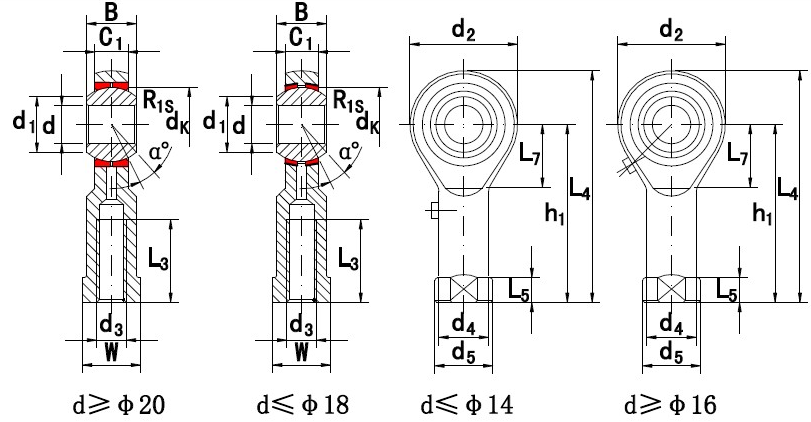

PHS 20 size:
d	20 mm
L4	100 mm
L5	10 mm
dL	34 mm
L3	40 mm
d1	24,4 mm
d2	46 mm
d3	27,5 mm
dk	34,925 / mm
h1	77 mm
r1 min.	0,2 mm
B	25 mm
C1	18 mm
W	30 mm
Thread (G)	M20×1,5
Weight	0,38 Kg
Basic dynamic load rating (C)	30,8 kN
Basic static load rating (C0)	35,5 kN
